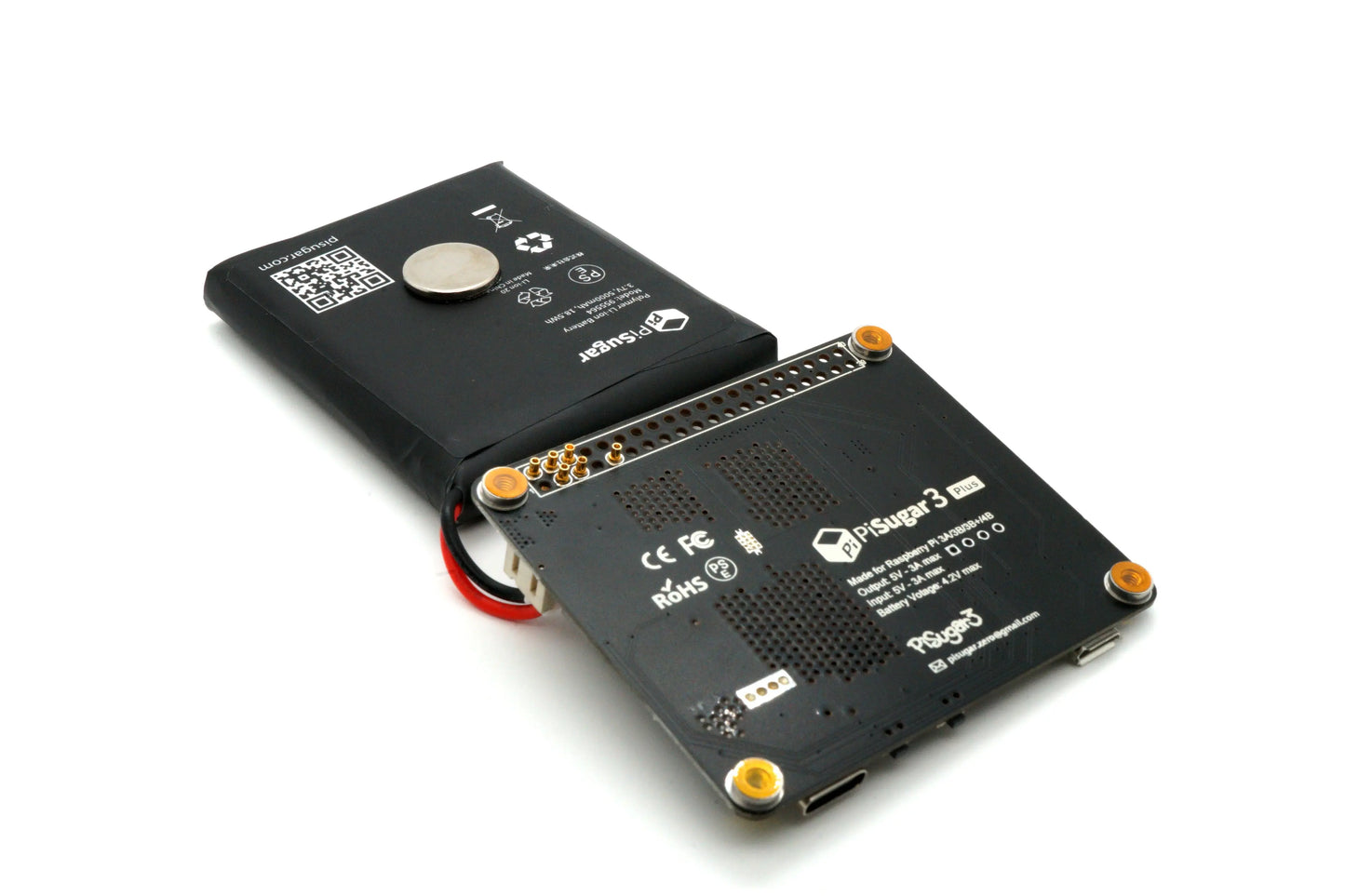

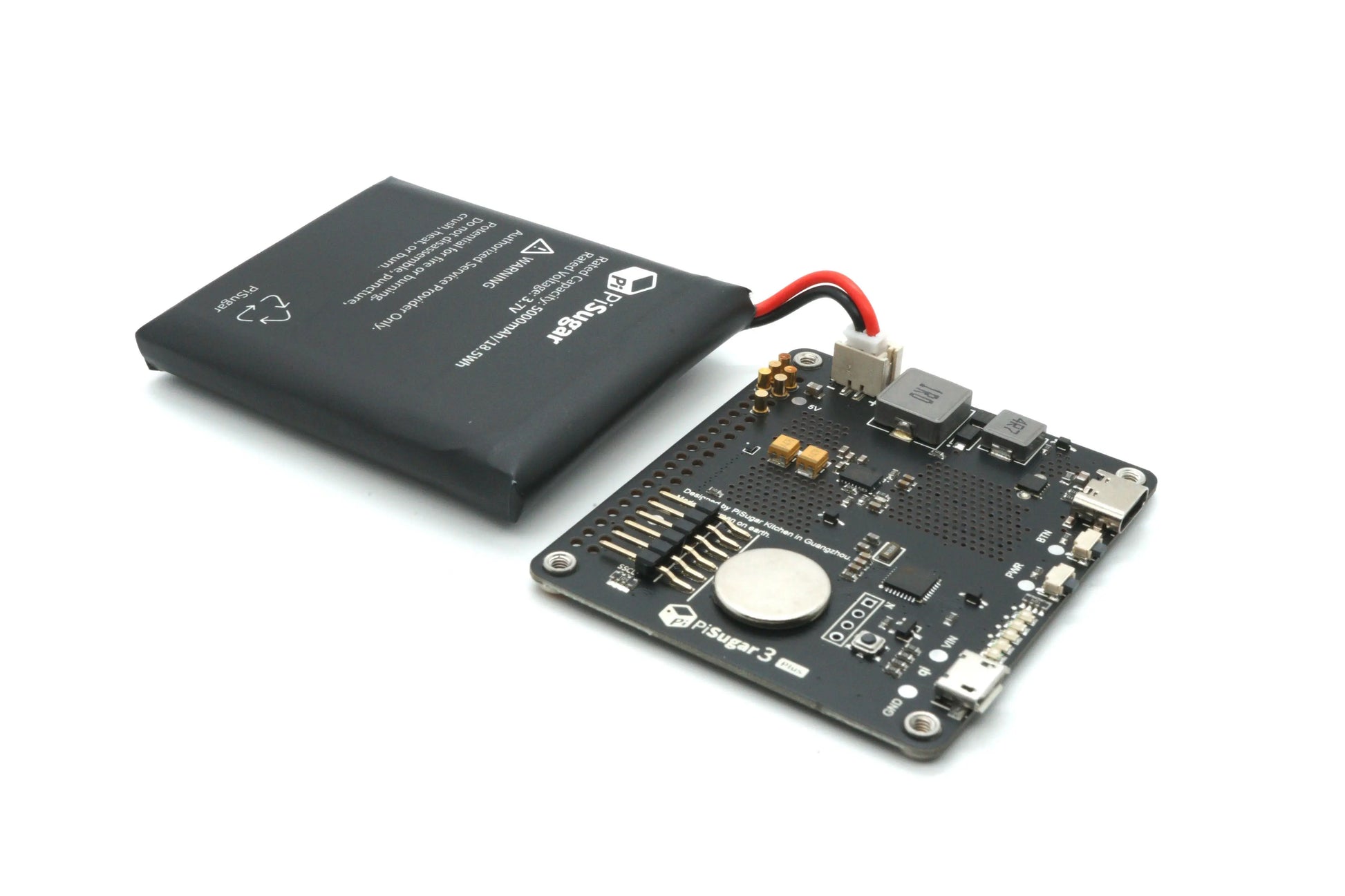

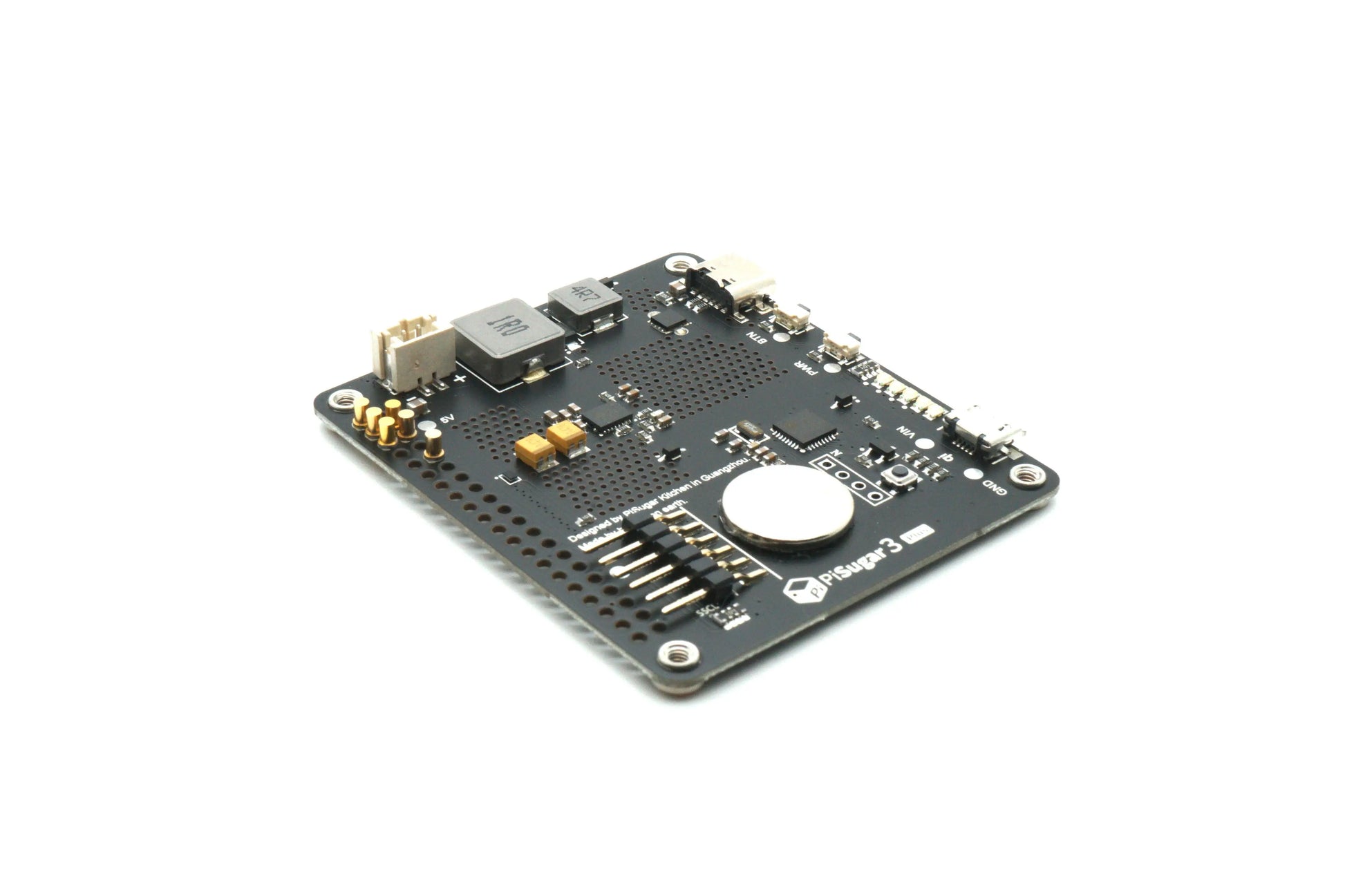

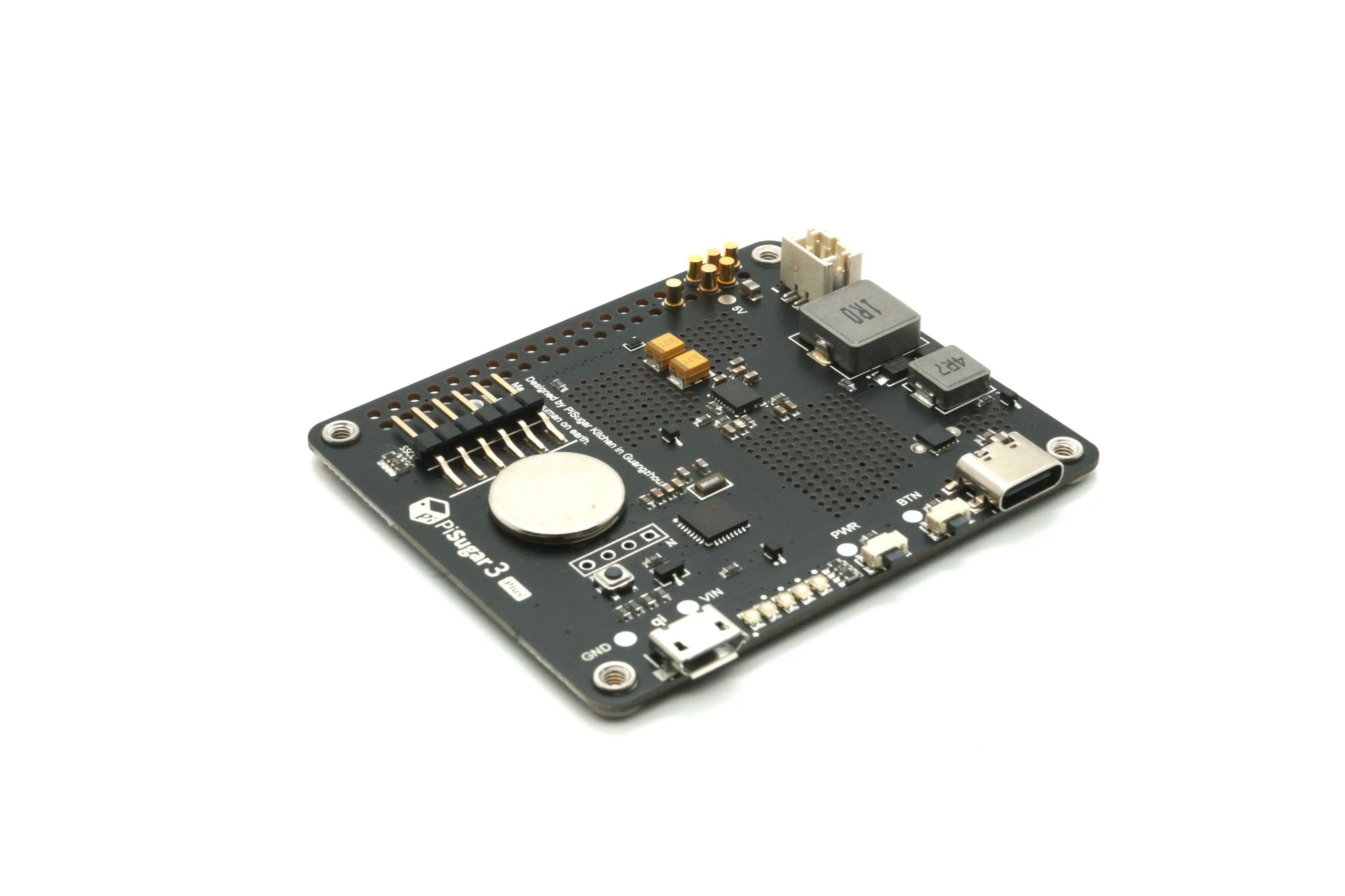

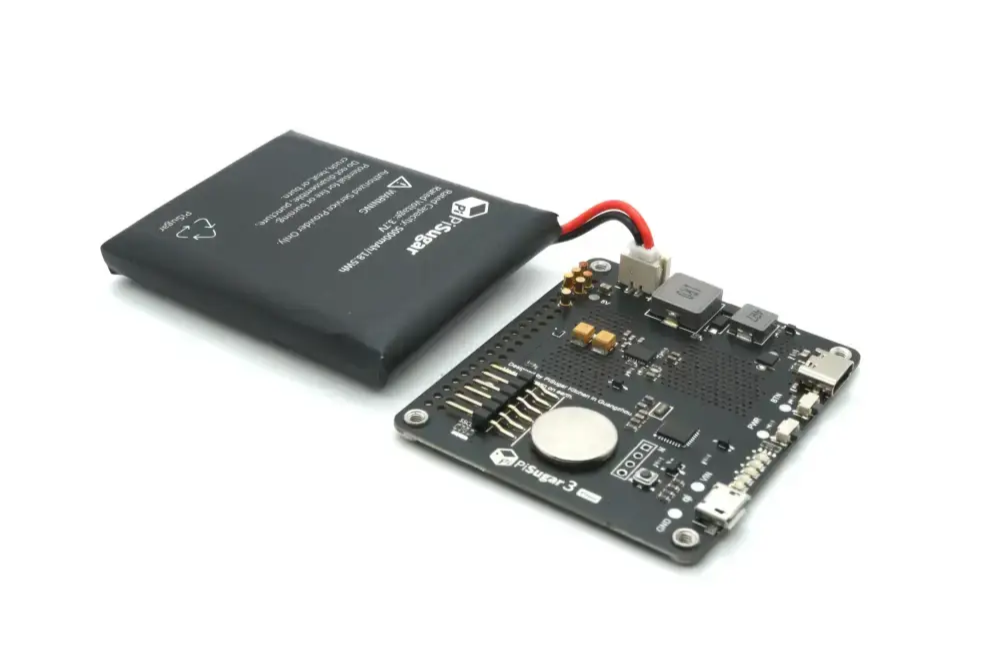

PiSugar 3 Plus 5000mAh Raspberry Pi UPS

Powerful Raspberry Pi UPS

PiSugar 3 Plus is the third generation of PiSugar Raspberry Pi UPS battery series, making Raspberry Pi a portable device. With independent MCU, on-board RTC, the Raspberry Pi can get the correct time whether it‘s powered or networked.

Features

• Full functions UPS

• OTA firmware upgrade

• TypeC/micro USB dual charging interface

• Designed for Raspberry Pi 3B/3B+/4B

• Back contact, easy to install, does not occupy GPIO

• I2C function control, address can be set

• Custom button


• Soft shutdown (hardware notification software shutdown)


• Anti-Mistaken Touch Switch

  Effectively avoid shutdown caused by accidental touch

• WebUI & APP

        Manage PiSugar on your PC and mobile.

• Software watchdog

         This function can restarts the Raspberry Pi system when the Raspberry Pi system crashes.

• On-boardRTC


          RTC has a write protection function in order to prevent data fluctuations caused by mis-operation or system instability.

• Hardware battery protection

          PiSugar 3 Plus provides hardware charging protection function, which effectively improves battery cycle life.

Electrical Specifications

• Input: 5V-3Amax
• Output: 5V-3Amax

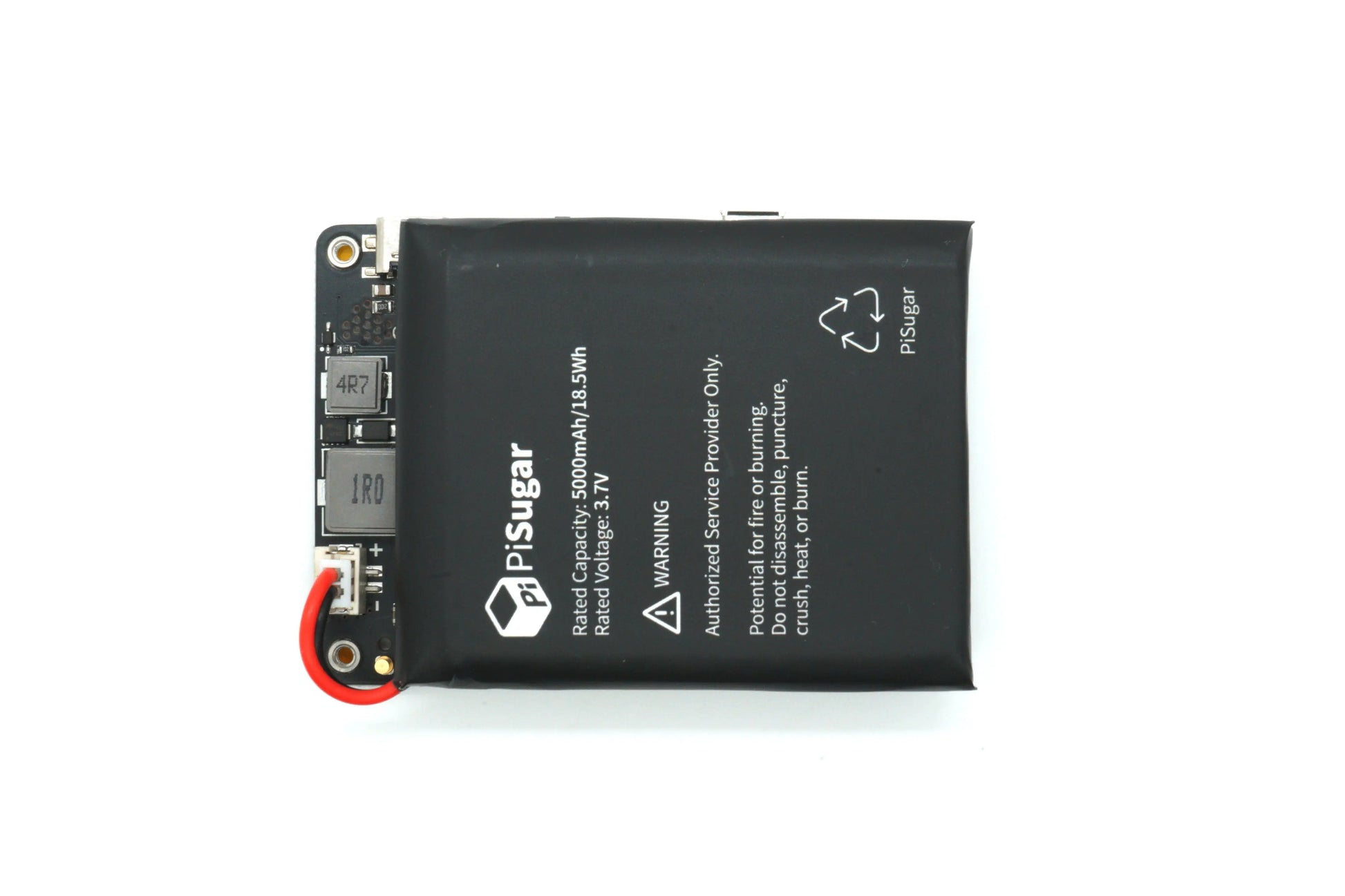

• Battery capacity: 5000 mAh
• Communication interface: I2C interface 0x57/0x68 address (can be set)

Package contains

• 1 x battery module (with 5000 mAh battery)
• 4 x screws

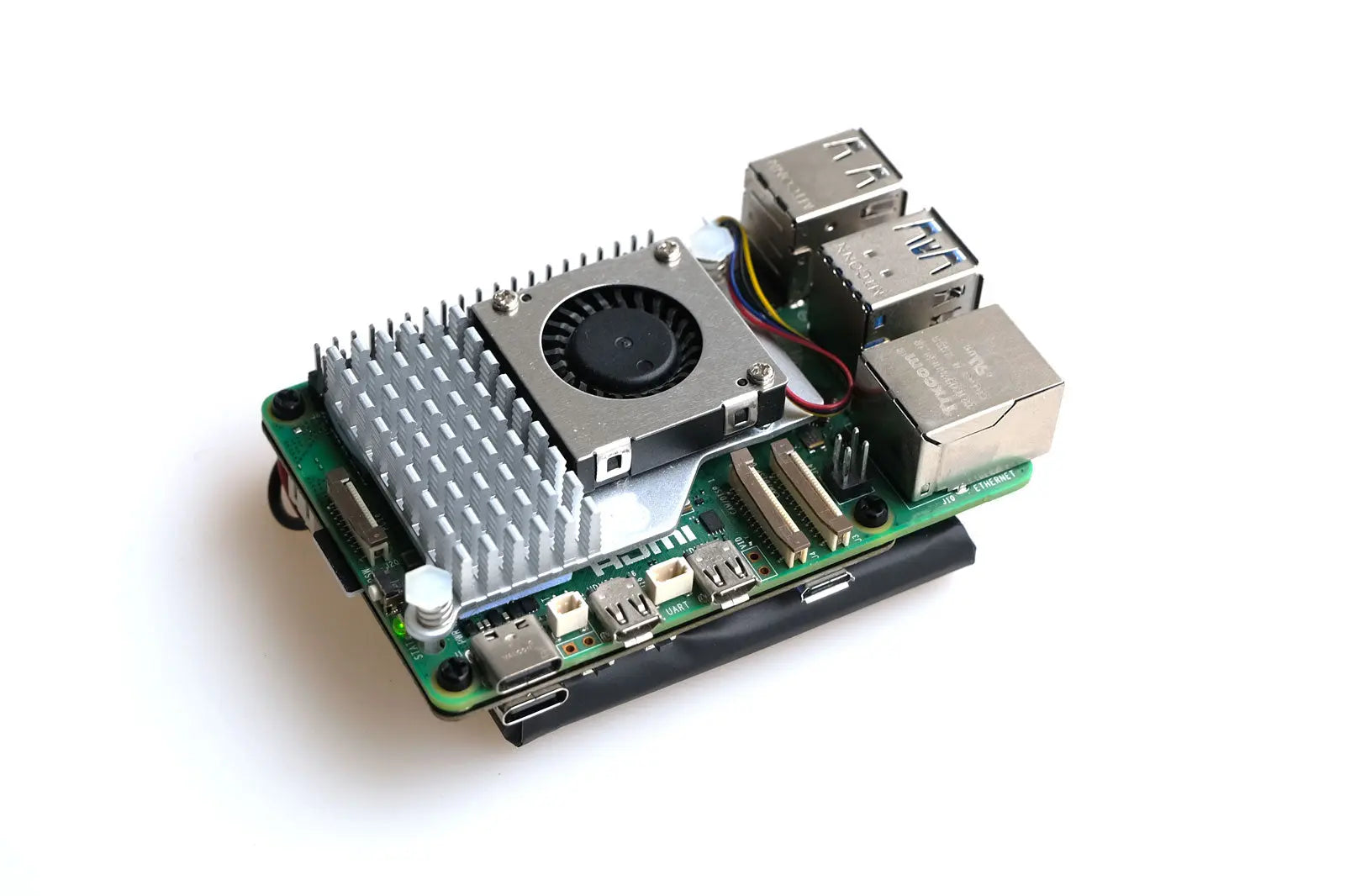

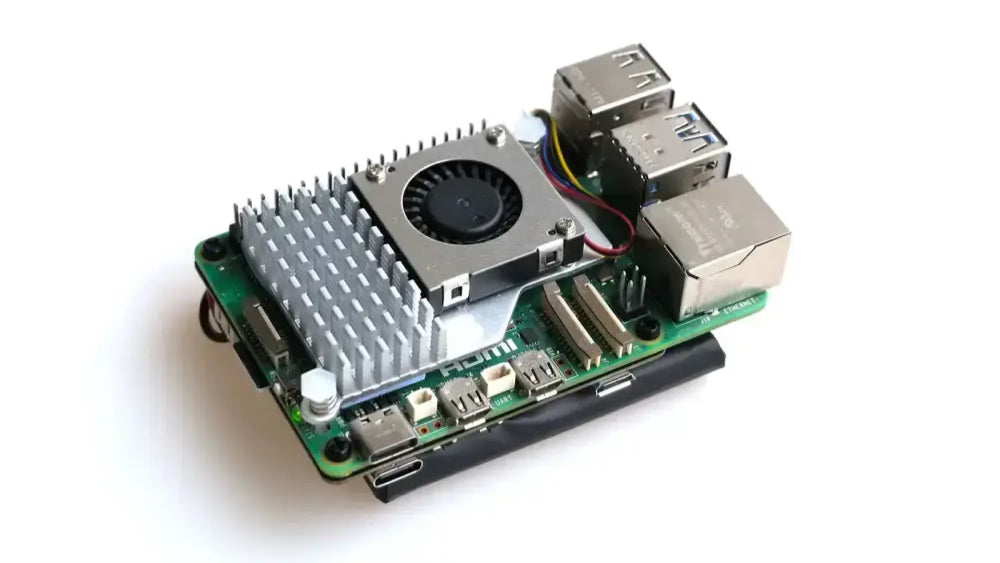

Support Pi Models

• Raspberry Pi 5B
• Raspberry Pi 4B
• Raspberry Pi 3B/3B+/3A+

More details can be found on our wiki.
