PiSugar 3 1200mAh Raspberry Pi Zero Battery

Compact Raspberry Pi Zero Battery

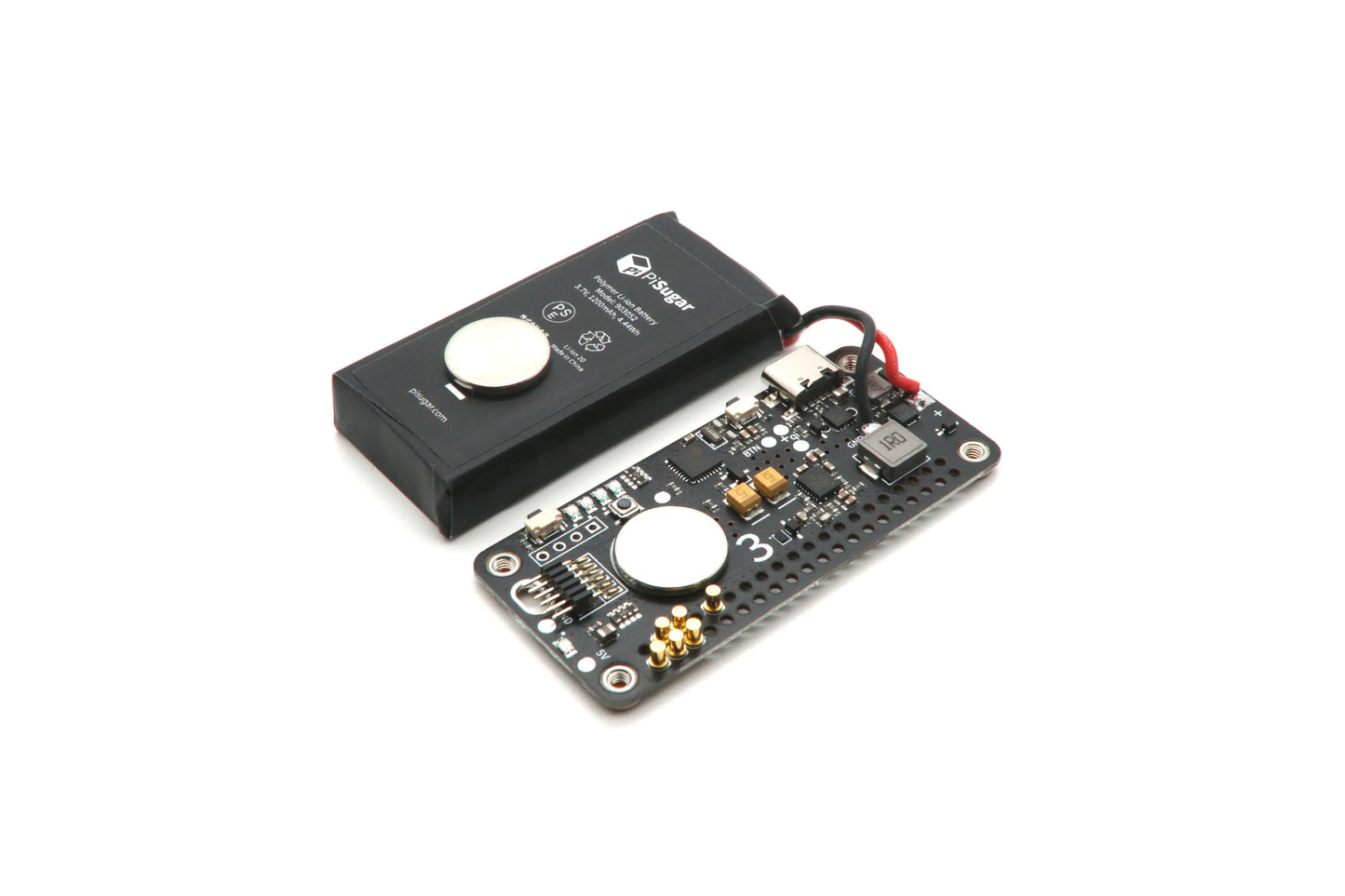

PiSugar 3 is the third generation of PiSugar, Raspberry Pi zero battery series, making Raspberry Pi a portable device. With the on-board RTC, the Raspberry Pi can get the correct time whether it‘s powered or networked.

Features

• Full functions UPS

• OTA firmware upgrade

• TypeC/micro USB dual charging interface

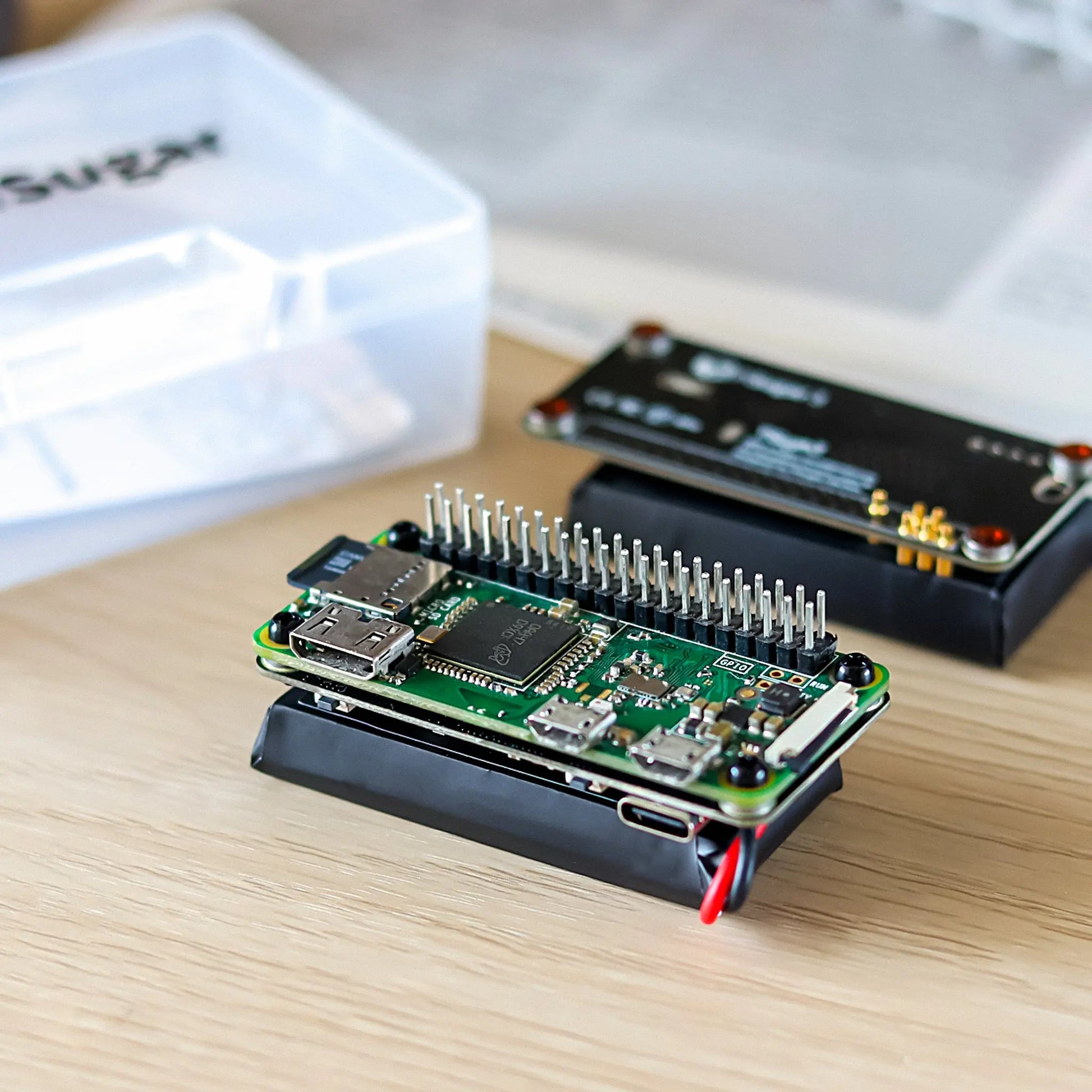

• Designed for Raspberry Pi Zero/Zero2 (WH)

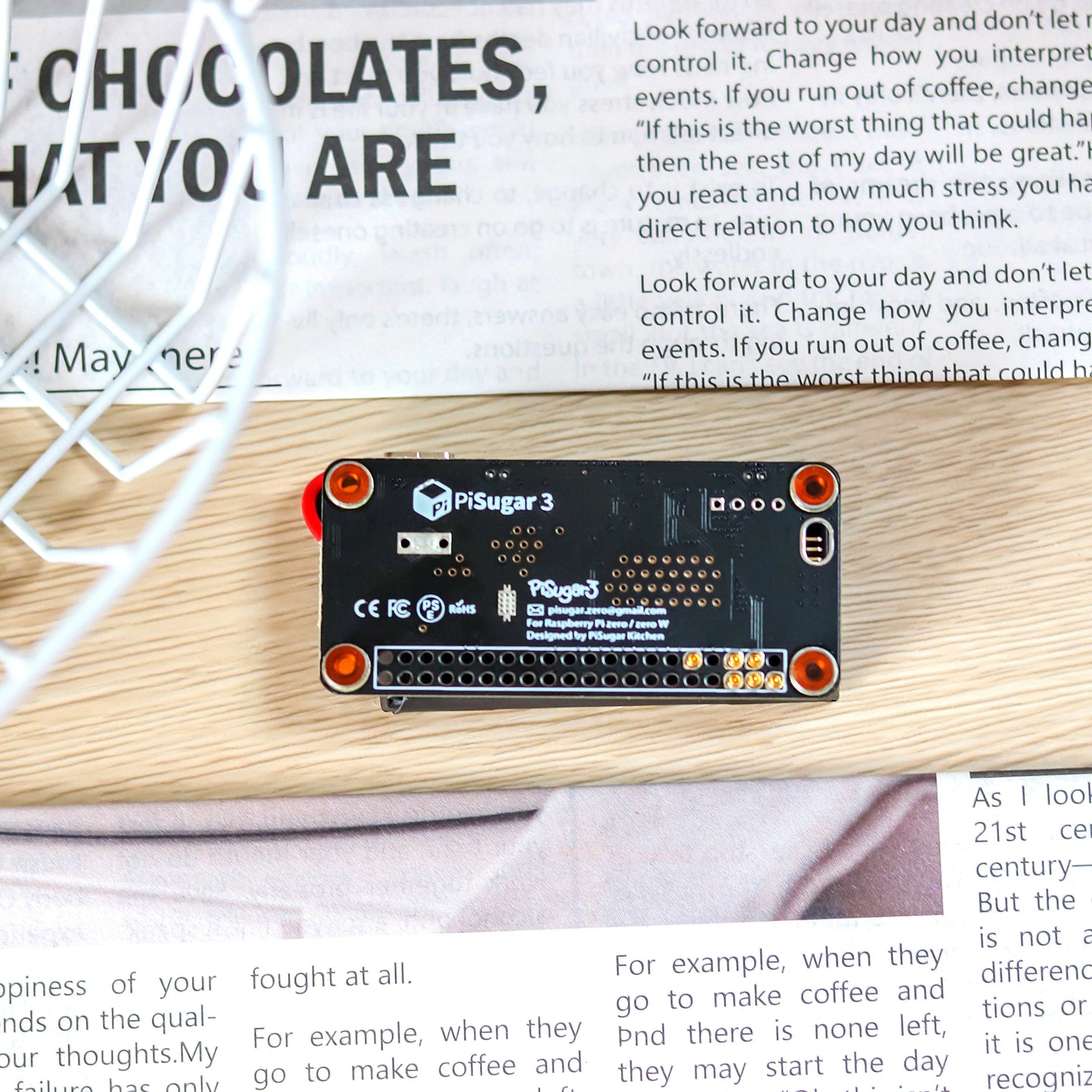

• Back contact, easy to install, does not occupy GPIO

• Customizable I2C address

• Custom button

• Soft shutdown (hardware notification software shutdown)


• Anti-MistakenTouch Switch

  Effectively avoid shutdown caused by accidental touch

• WebUI & APP

          Mange PiSugar on your PC and mobile

• Software watchdog

         This function can restarts the Raspberry Pi system when the Raspberry Pi system crashes.

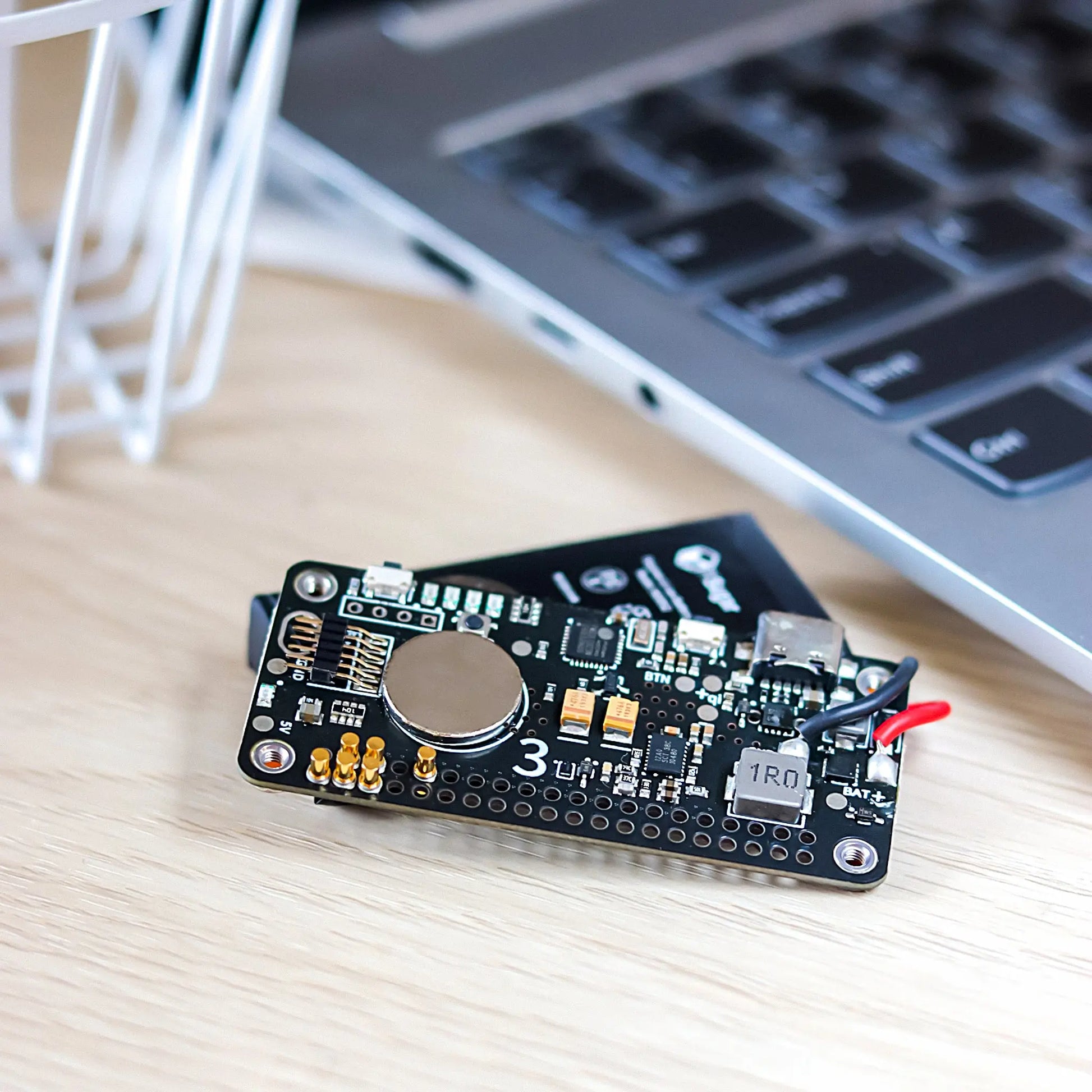

• On-boardRTC


          RTC has a write protection function in order toprevent data fluctuations caused by mis-operation or system instability.

• Hardware battery protection

           PiSugar3 provides hardware charging protection function, which effectively improves battery cycle life.

Electrical Specifications

• Input: 5V-3Amax
• Output: 5V-3Amax

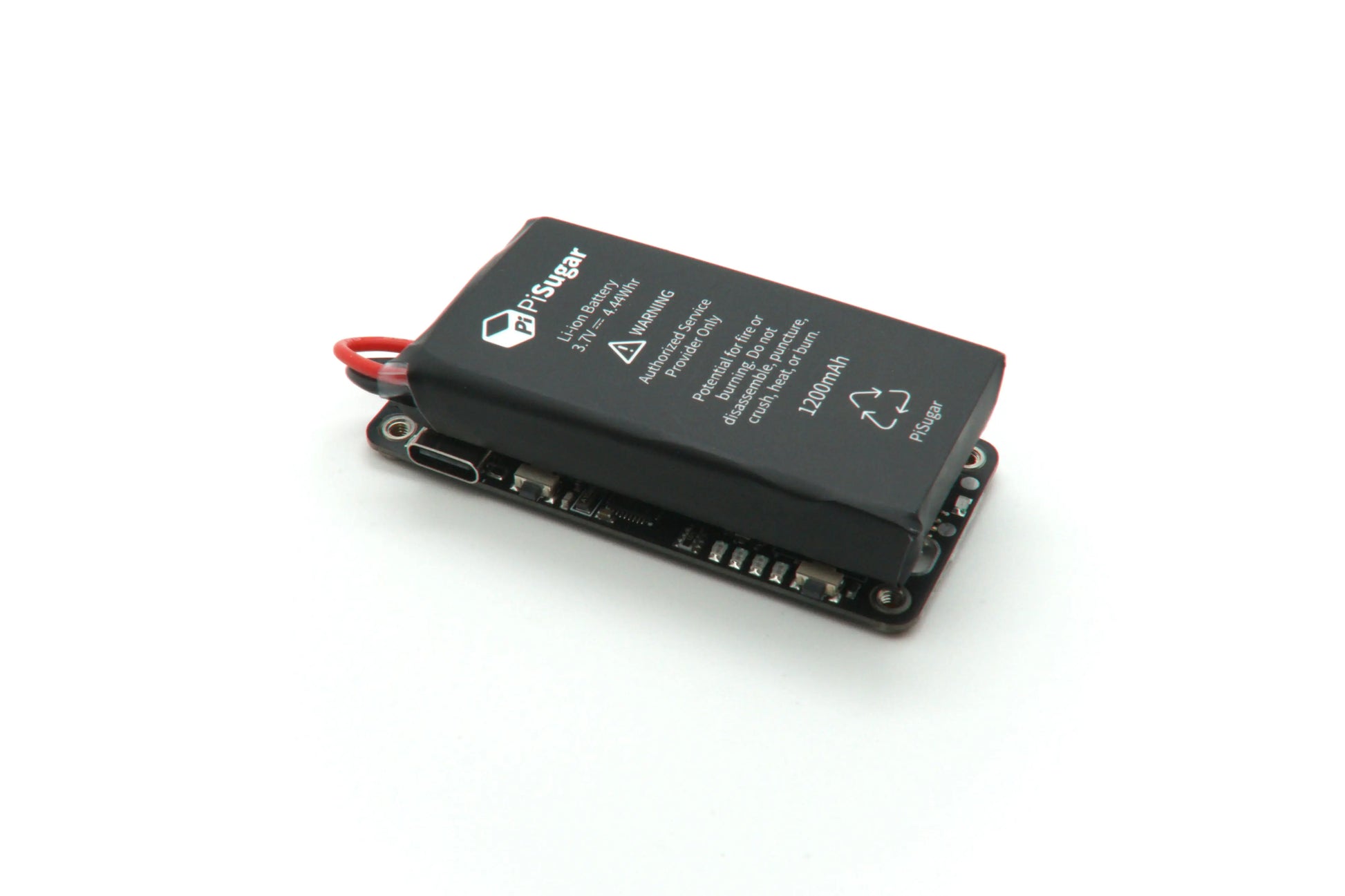

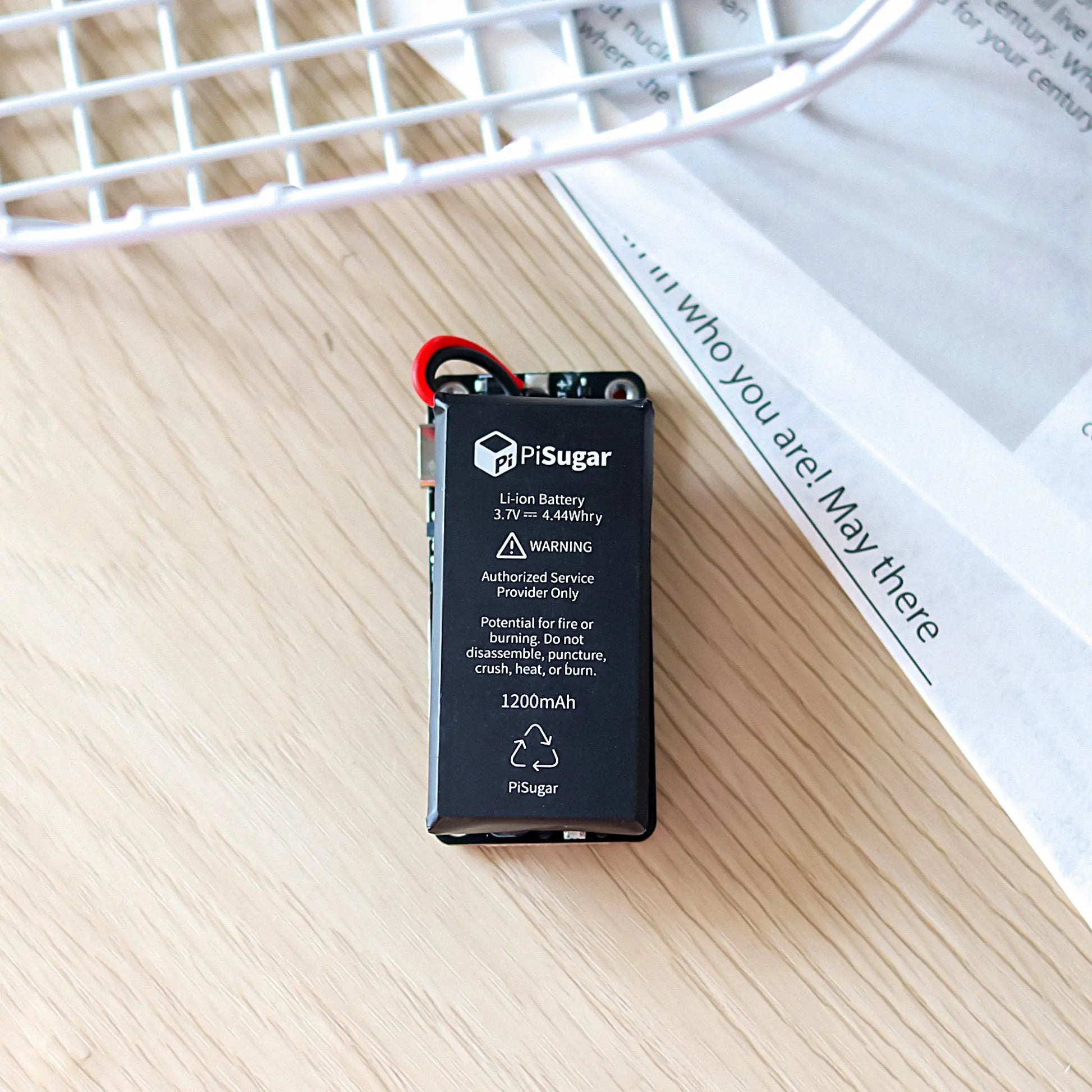

• Battery capacity: 1200 mAh
• Communication interface: I2C interface 0x57/0x68 address (mutable  address)

Package contains

• 1 x battery module (with 1200mAh battery)
• 4 x screws

Support Pi Models

• Raspberry Pi zero (WH)
• Raspberry Pi zero 2 (WH)

Open Source Case

• PiSugar 3 Case
  https://github.com/PiSugar/PiSugar/tree/master/model3
• PiHats lids
  https://github.com/PiSugar/pisugar-case-pihat-cap

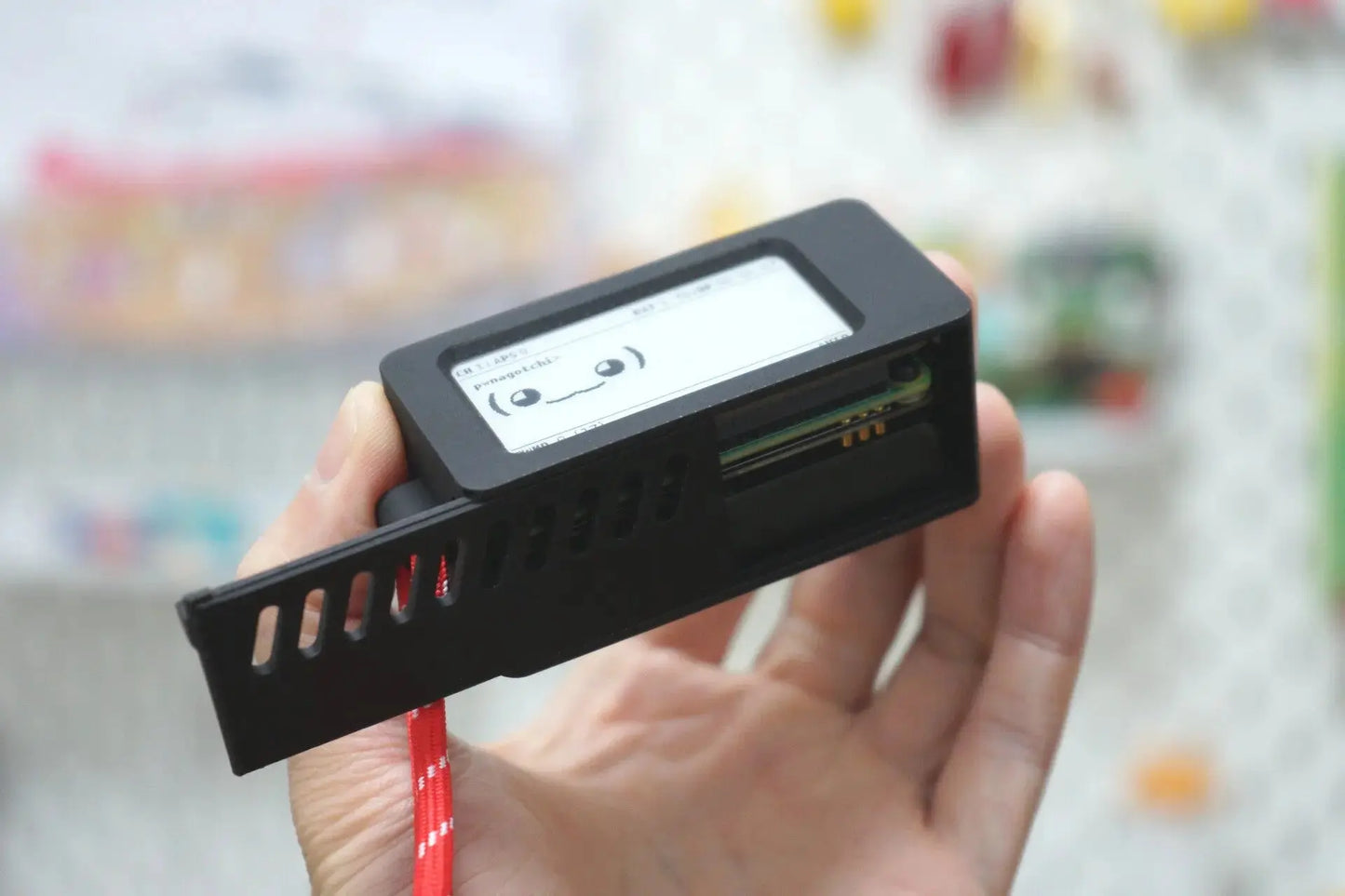

• Pwnagotchi slim case
  https://github.com/PiSugar/pwnagotchi-case/tree/main/pisugar3-slim-pwn

More details can be found on our wiki.
