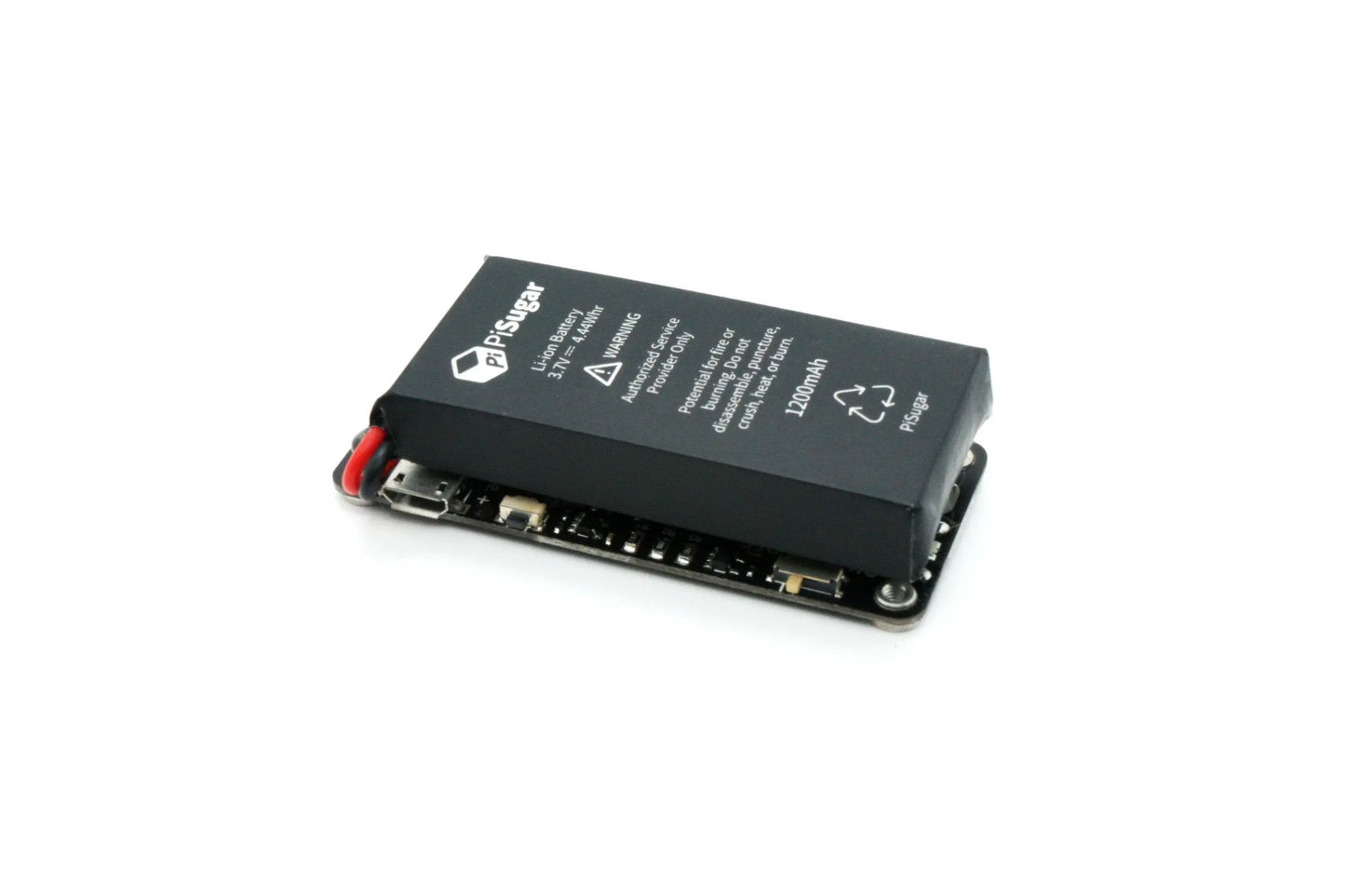

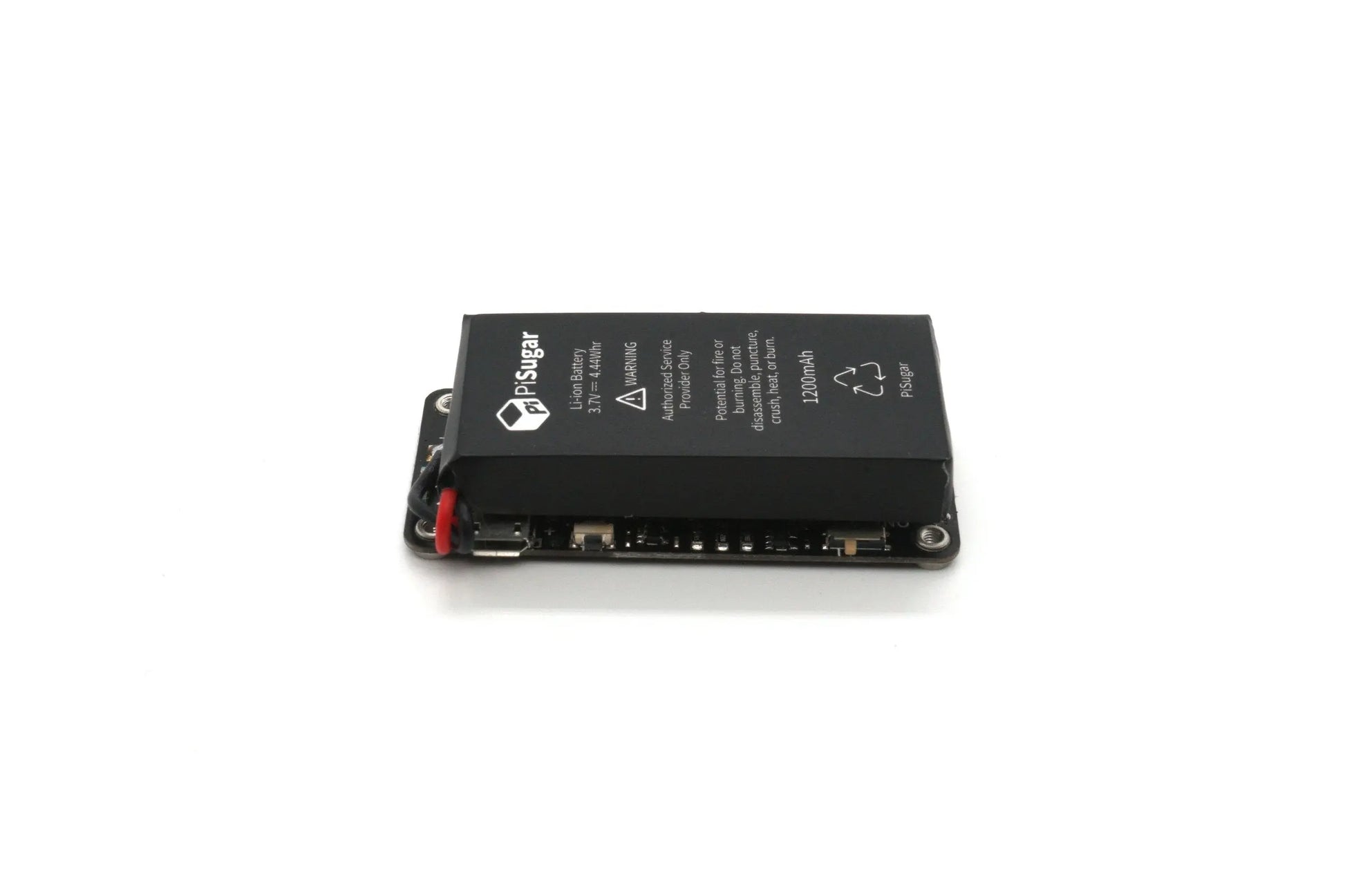

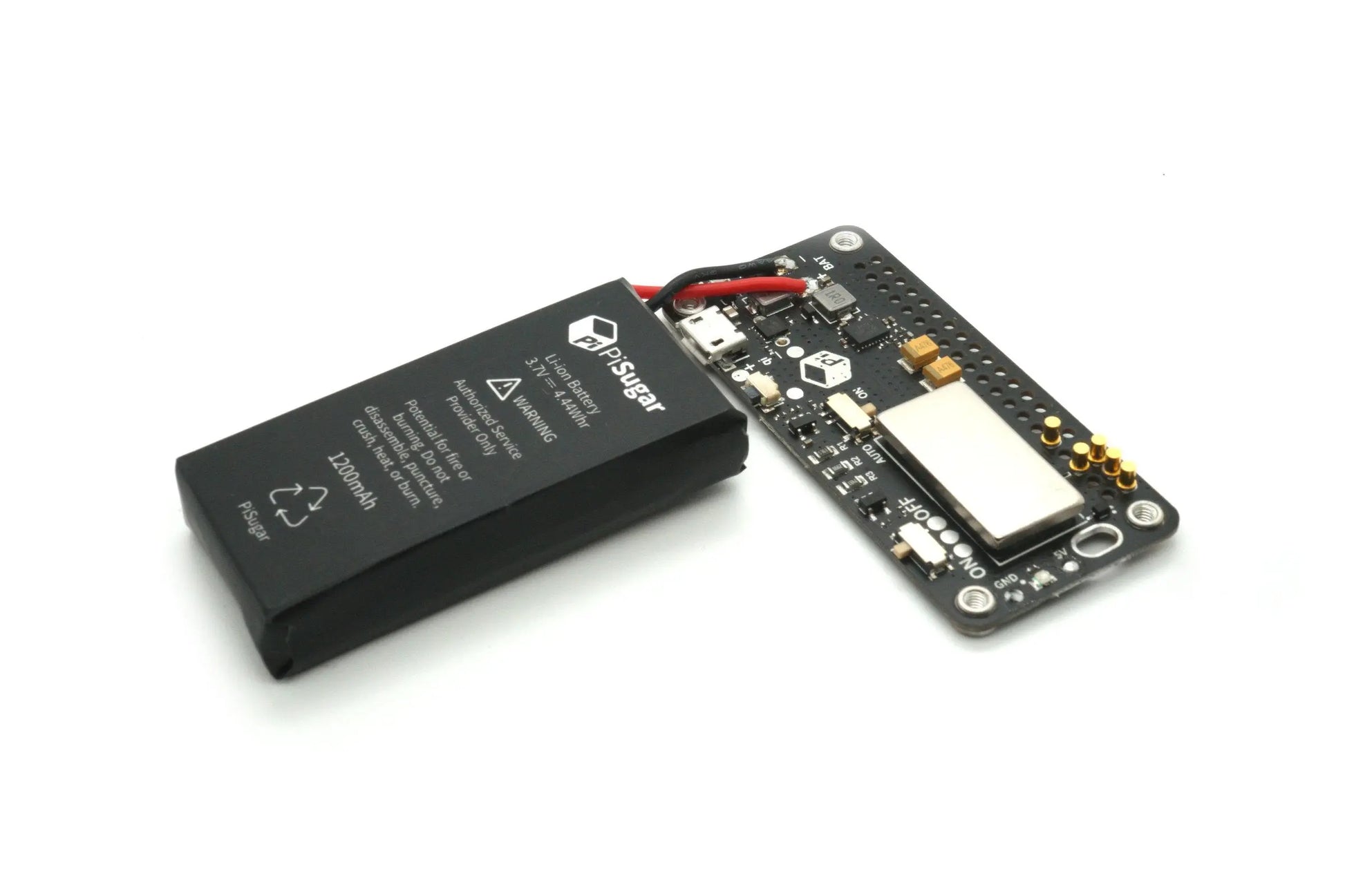

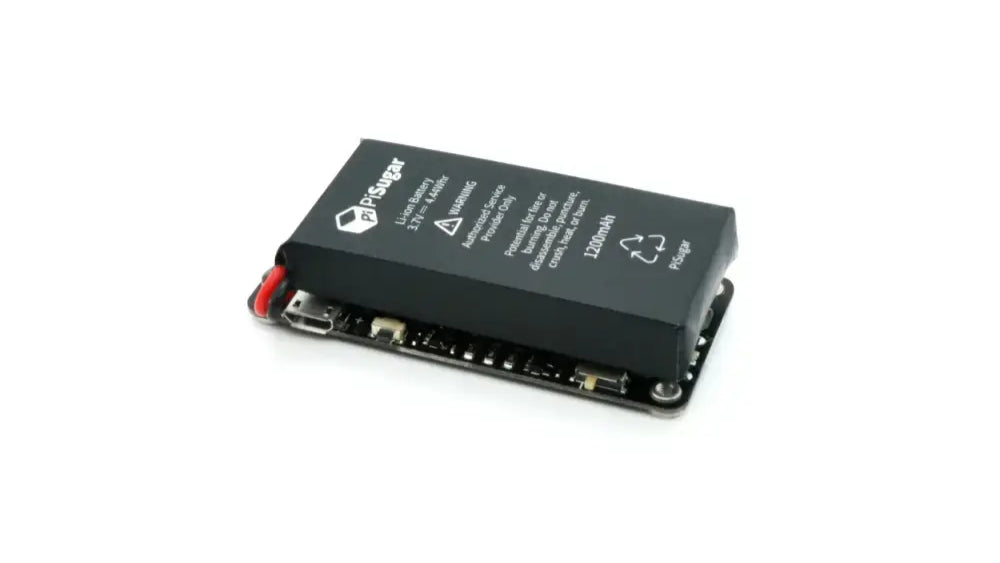

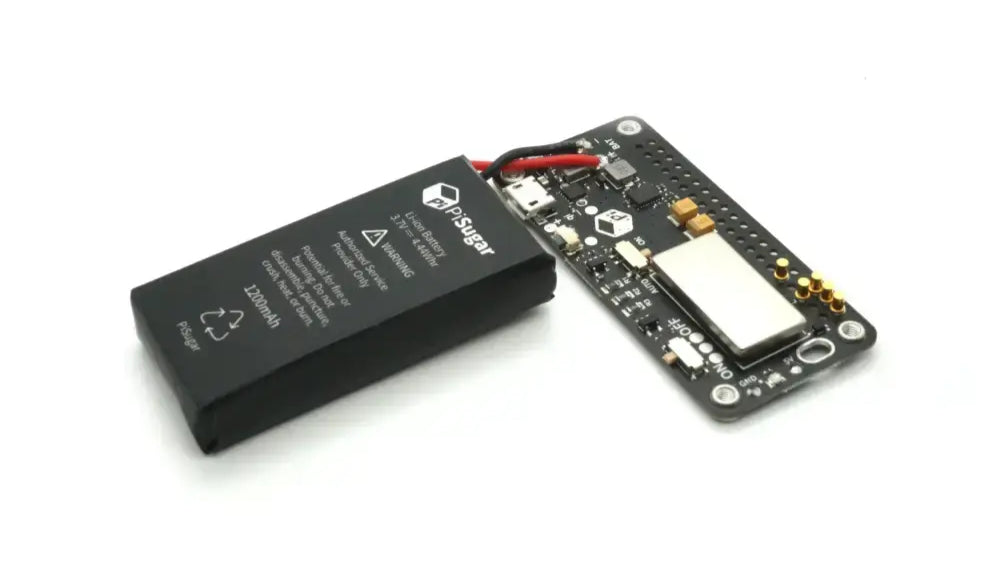

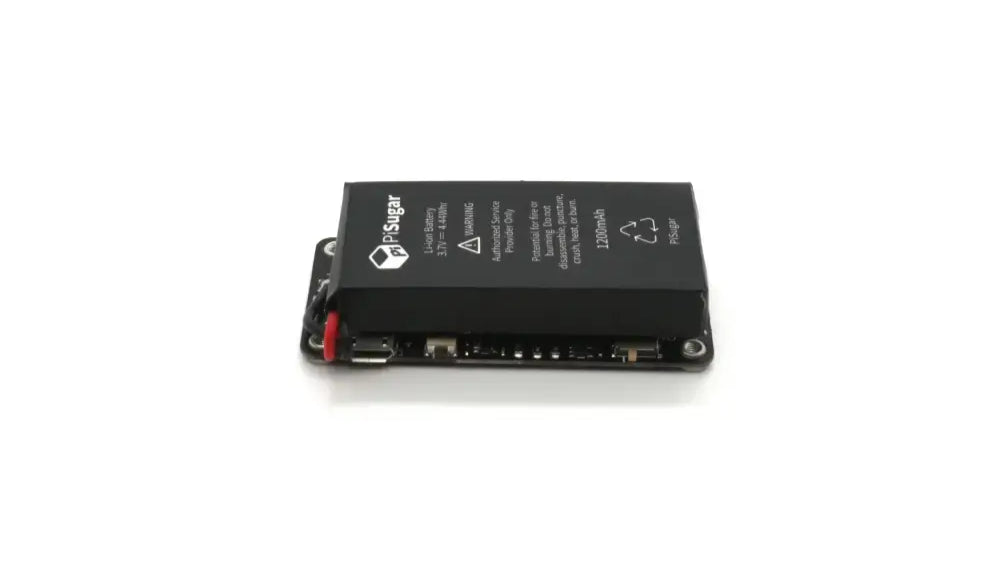

PiSugar S 1200 mAh Raspberry Pi Zero Battery

Raspberry Pi Zero Battery

PiSugar S is a Raspberry Pi Zero battery and a complete UPS that maximizes the zero portability of the Raspberry Pi.

It is a complete UPS with a continuous output capability of 5V2A.

Note: The functions of PiSugar S are almost entirely hardware-based. It does not support I2C communication and can only detect whether an external power source is connected. If you need advanced features such as retrieving battery status via software or scheduled power-on, please consider the PiSugar 3 or PiSugar 2 series products.

Features

•  5V2A output

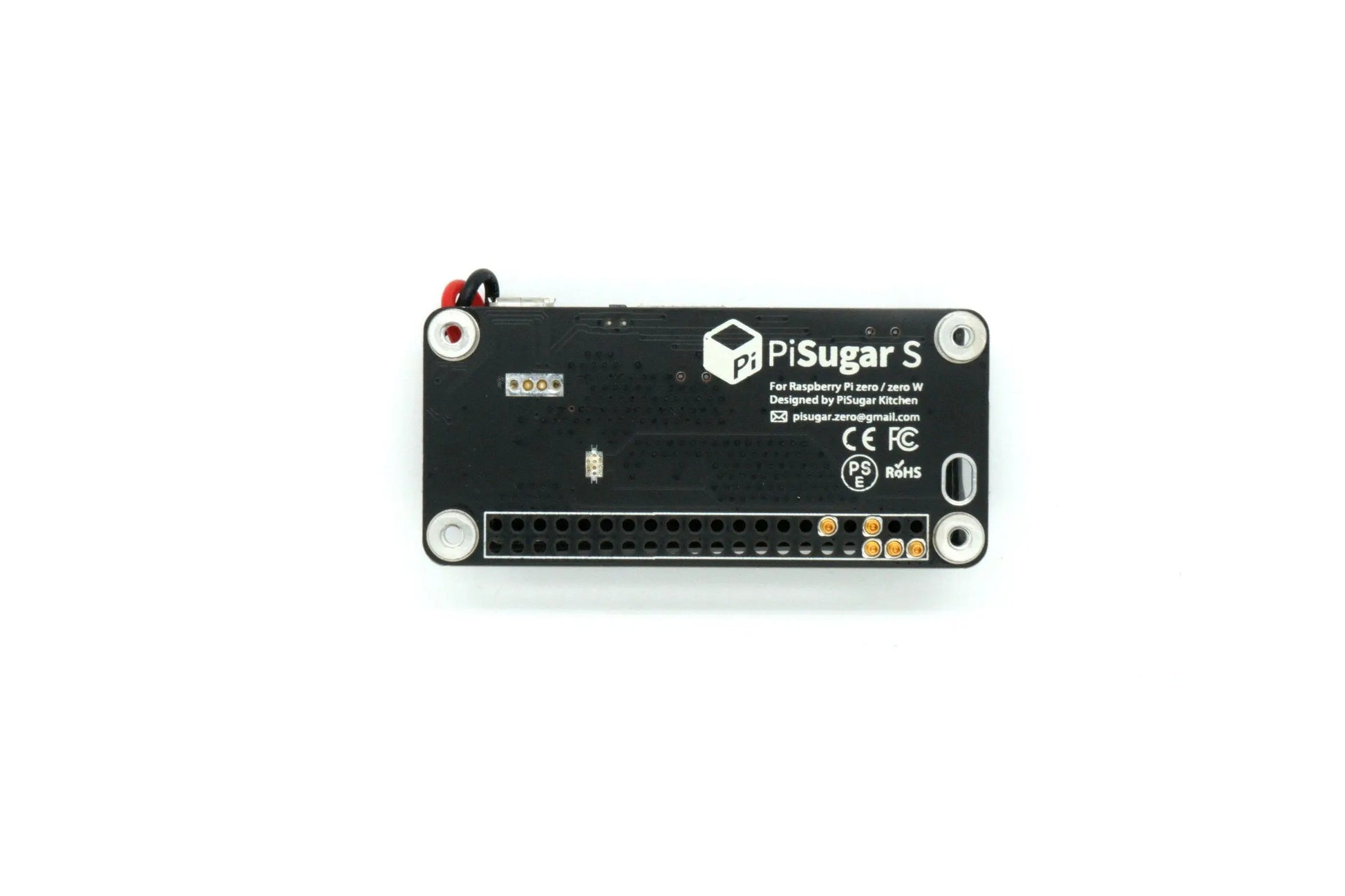

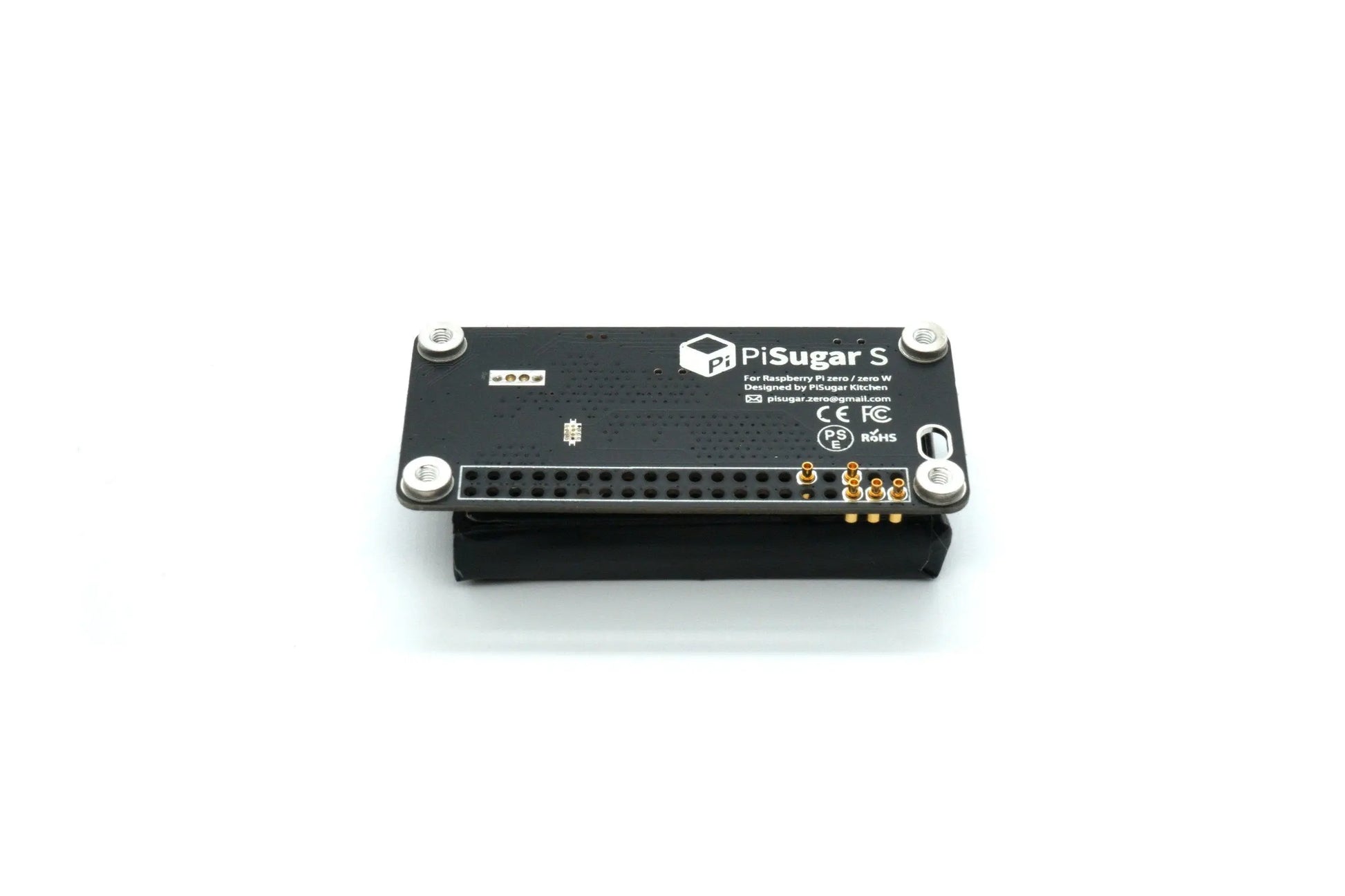

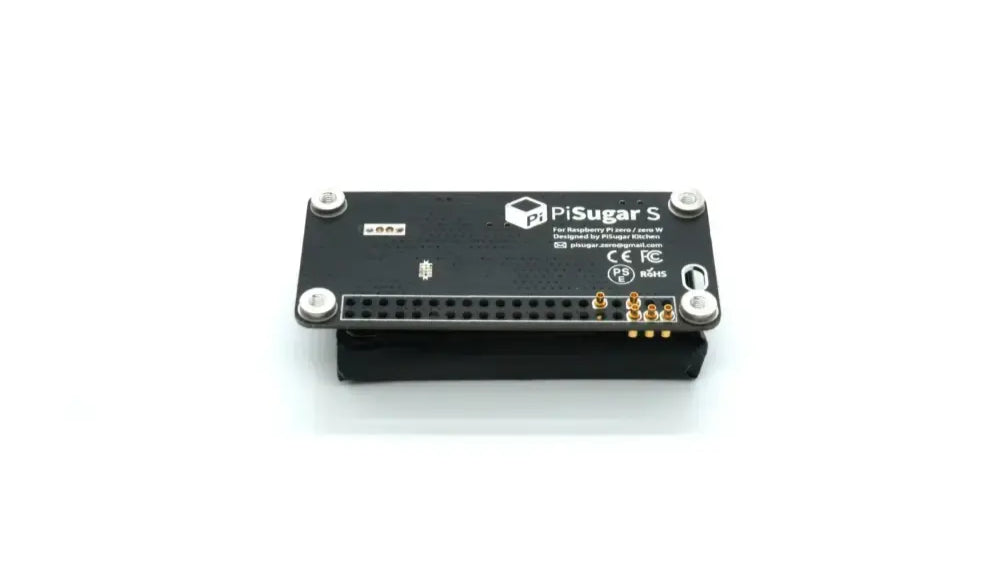

• Bottom contact, does not affect GPIO expansion

• Type-C charging port

• Support simultaneous charging and discharging

• UPS function

• External power detection (notify Pi to save shutdown)


• Physical disconnect switch


• Expansion through wireless charging and solar charging


• Auto boot on power restore
  This feature conflicts with the Raspberry Pi's I2C functionality. PiSugar S has a dedicated switch that allows you to disable this feature.


• GPIO Button
  This feature conflicts with the Raspberry Pi's I2C functionality. If you have enabled the Raspberry Pi's I2C feature, please do not press the GPIO button.

Electrical Specifications

• Input: 5V-2A

• Output: 5V-2A max

• Battery capacity: 1200 mAh

• Battery voltage: 4.2V max

Package contains

• 1 x battery module
• 4 x screws

Support Pi Models

• Raspberry Pi Zero 2(W/WH)
• Raspberry Pi Zero (W/WH)

Notice

PiSugar S use I2C SCL GPIO to startup the Raspberry Pi system, so the automatic startup function and the custom button can not be used together with I2C communication

PiSugar S series does not support power inquiry.

More details can be found on our wiki.
