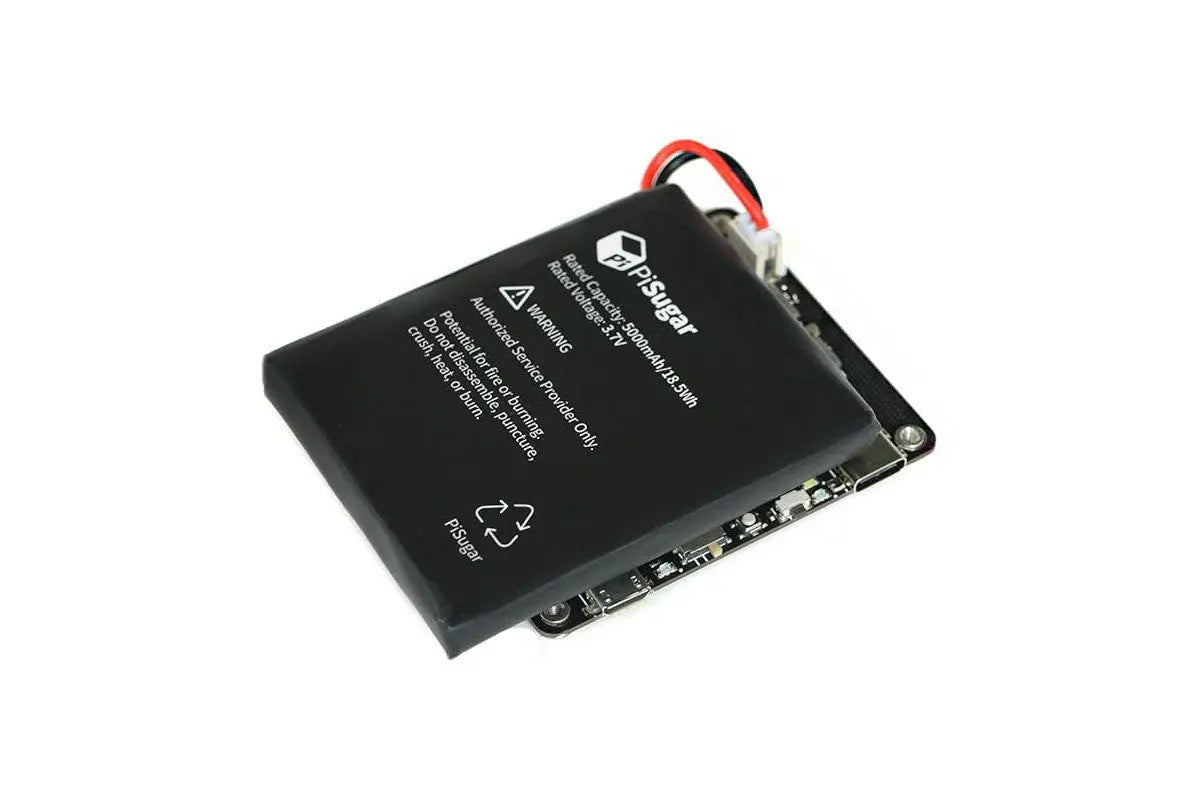

Pisugar 2 Plus 5000 mAh Raspberry Pi UPS

Powerful Raspberry Pi UPS

PiSugar 2 Plus is a portable power platform specially designed for Raspberry Pi. It integrates UPS, RTC, I2C battery management, and custom buttons, the continuous output capability of 5V3A. All of these features bring unprecedented portability to Raspberry Pi.

Features

• 5V3A output, perfect for all versions of Raspberry Pi
• Bottom contact with SugarPin, do not occupy GPIO
• I2C to get battery information
• Onboard RTC, timing boot
• TypeC + Micro USB Charging
• Server + WebUI for easy management
• Custom button function

Electrical Specs

• Input: 5V-3A
• Output: 5V-3Amax
• Battery Capacity: 5000mah
• Battery Voltage: 4.2Vmax

Advanced Features

• Support charged and discharged at the same time
• UPS
• Low battery safe shutdown
• RTC real-time clock
• Timing boot
• Programmable button
• WebUI for management
• Physical disconnect switch
• Extensible with wireless charging and solar charging

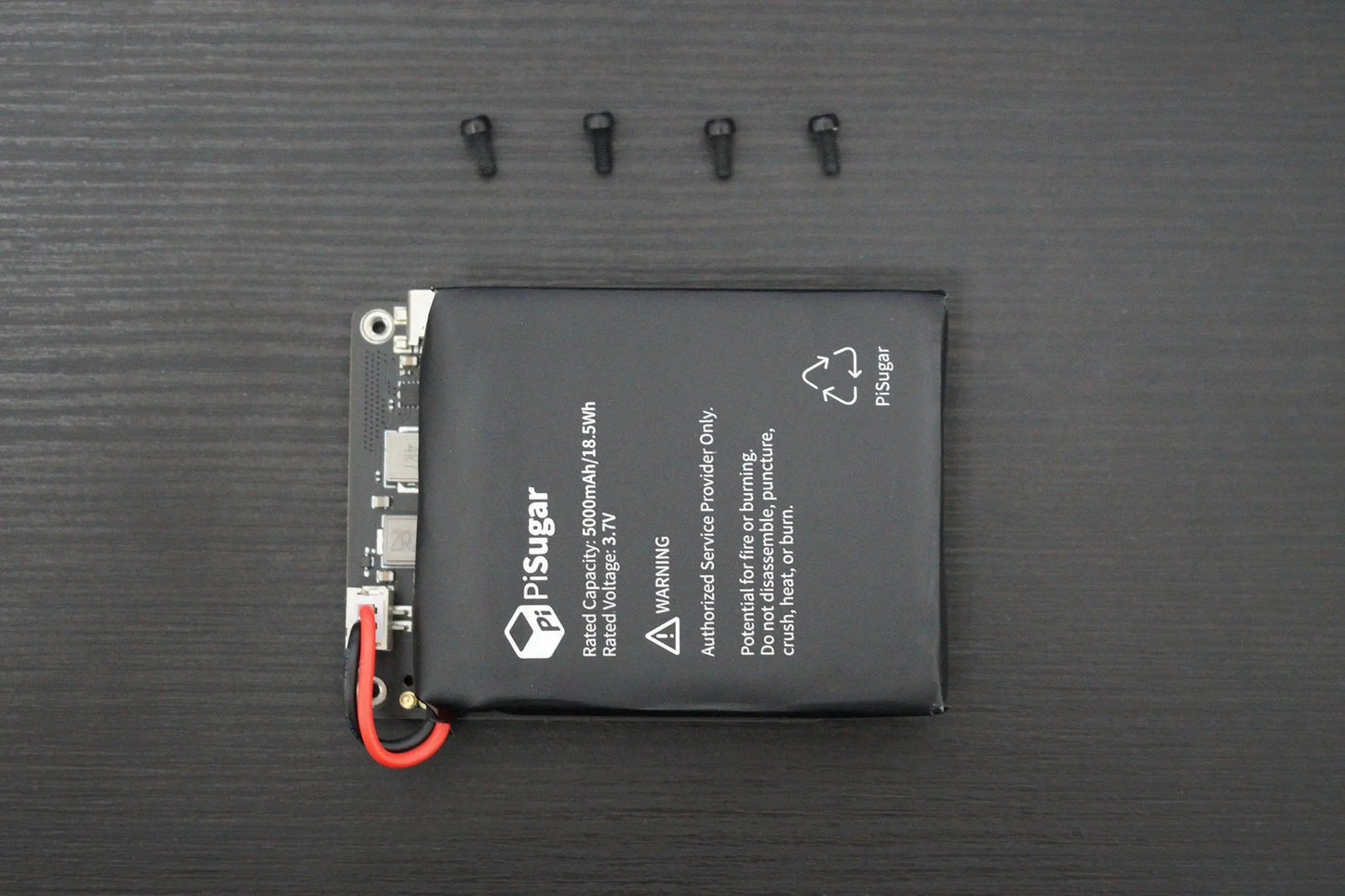

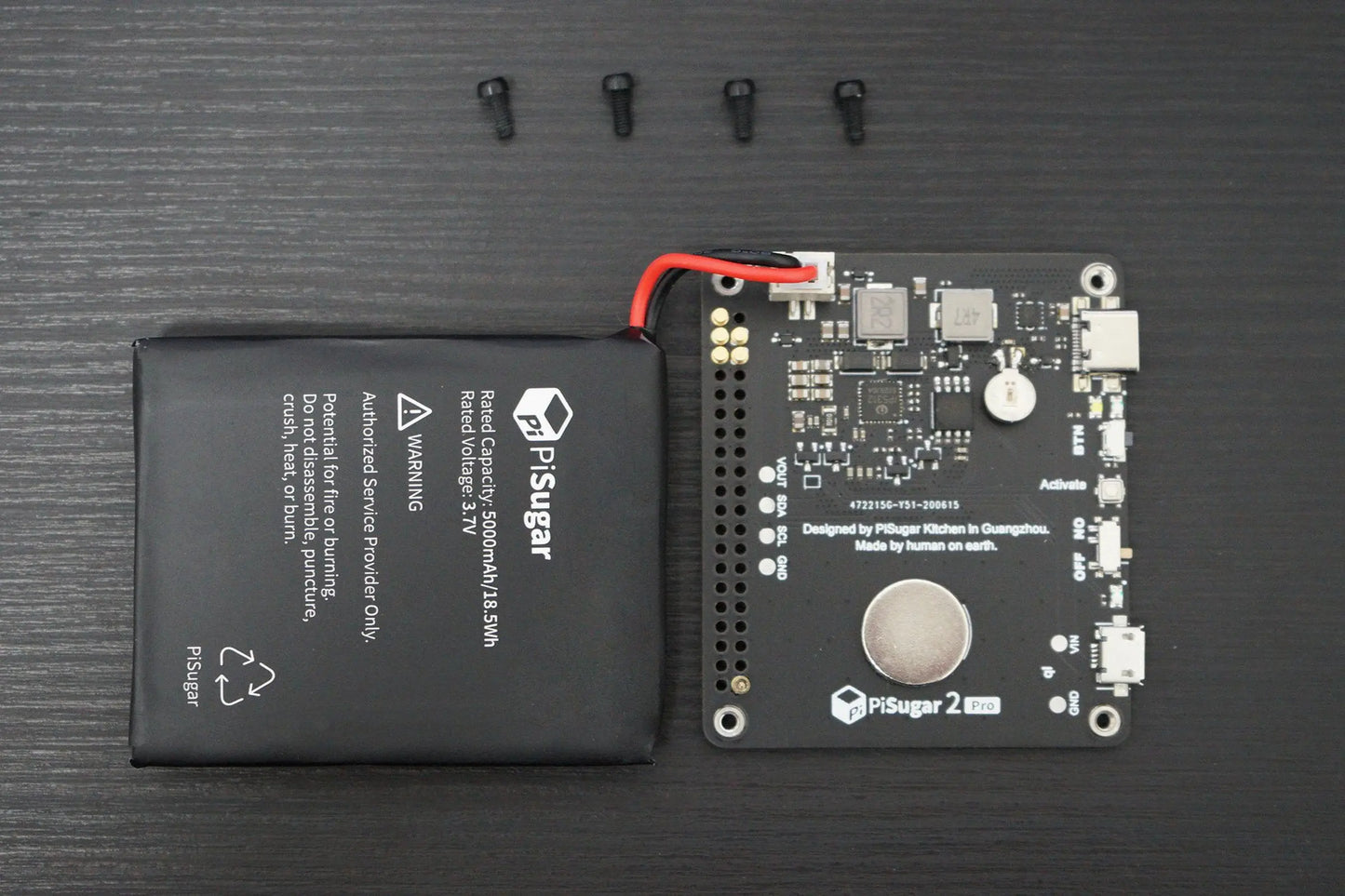

Package Include

• 1 x Battery Module
• 4 x Screws

Hardware Installation

1. Turn the switch to OFF
2. Align pogo pins to Raspberry Pi GPIO
3. Use matching screws to tighten
4. Press and hold the activation button for 2 seconds (activation is required after battery replacement/low battery shutdown)
5. Turn the switch to ON and enjoy

More details can be found on our wiki.

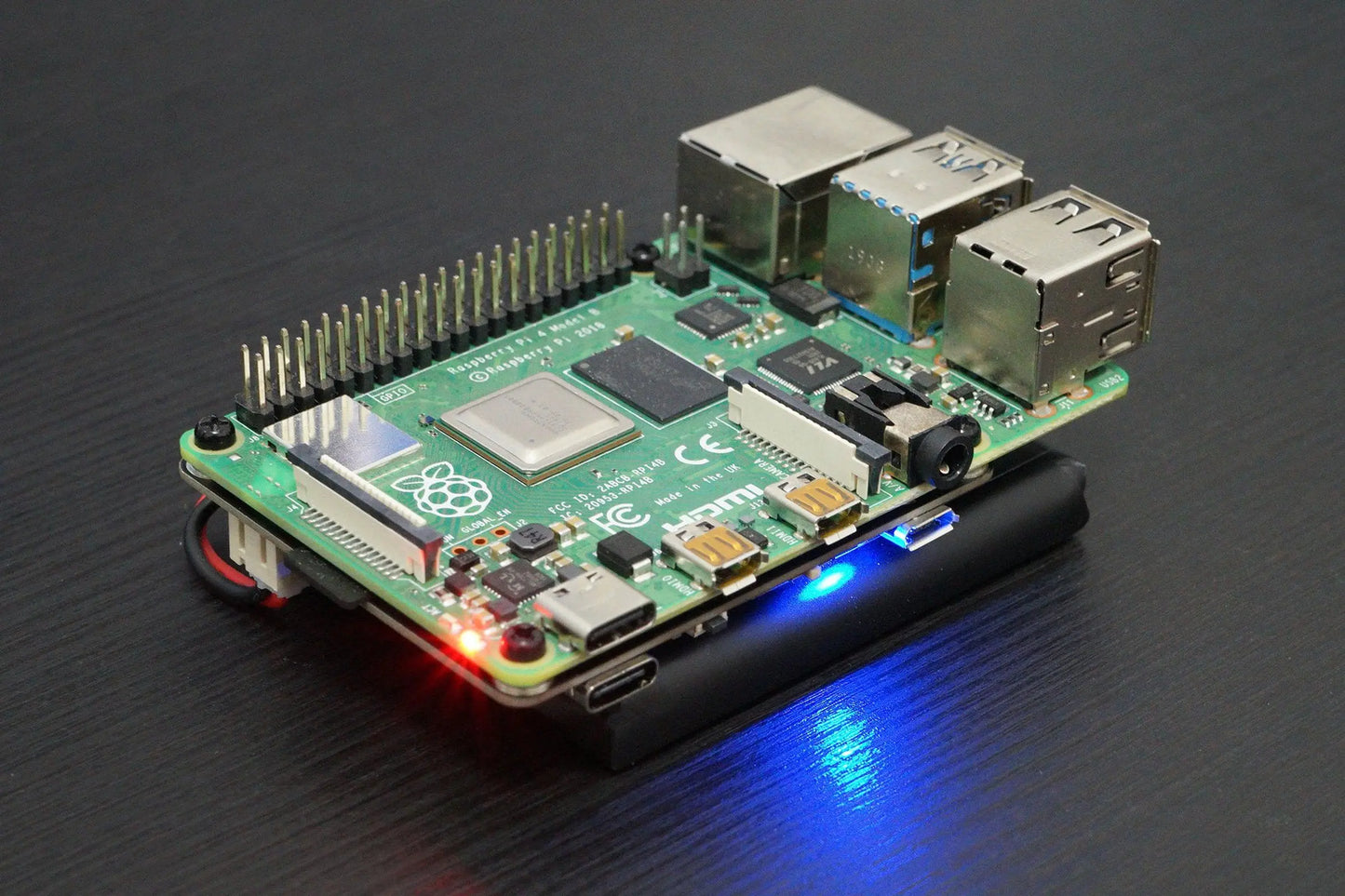

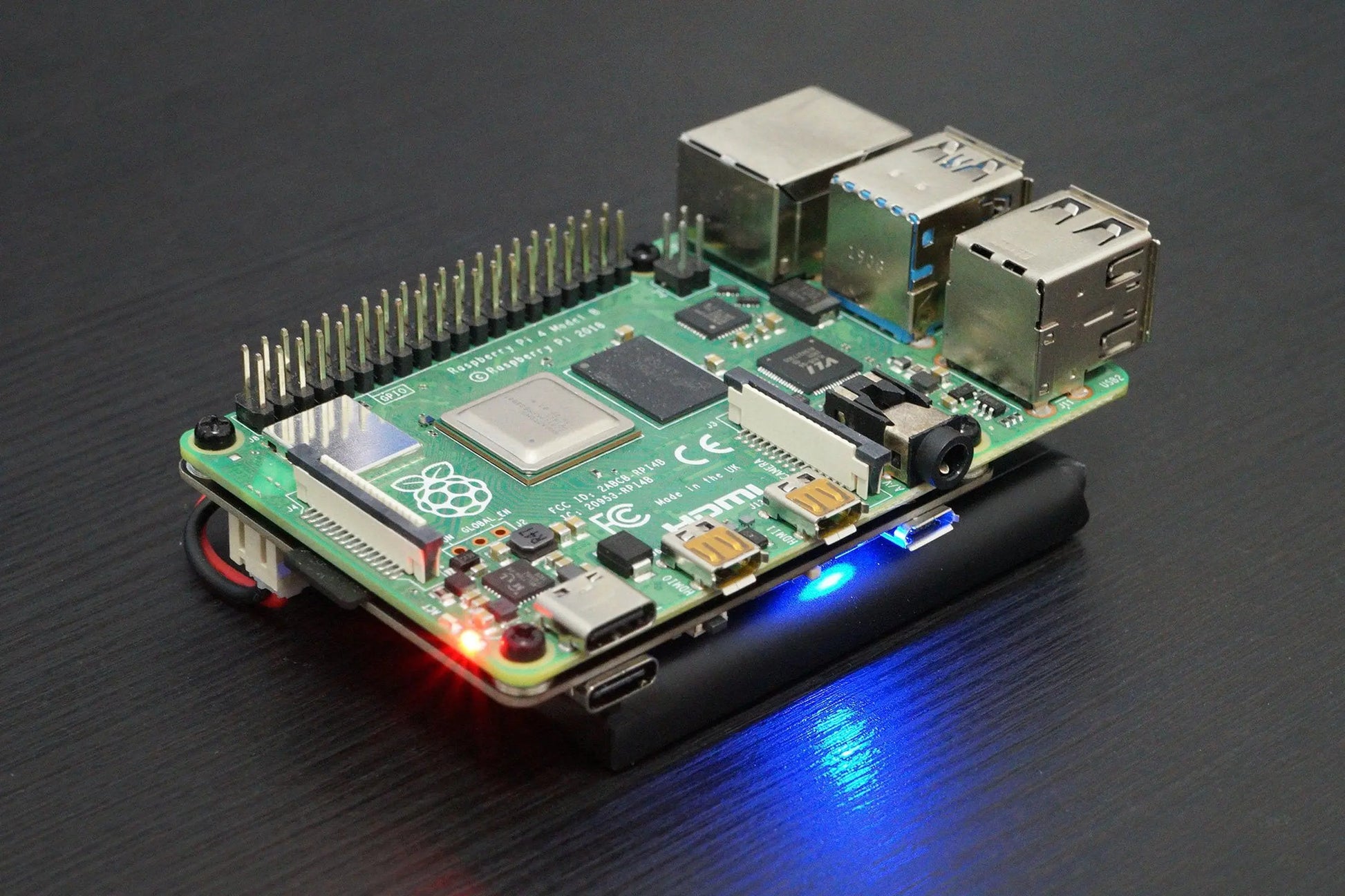

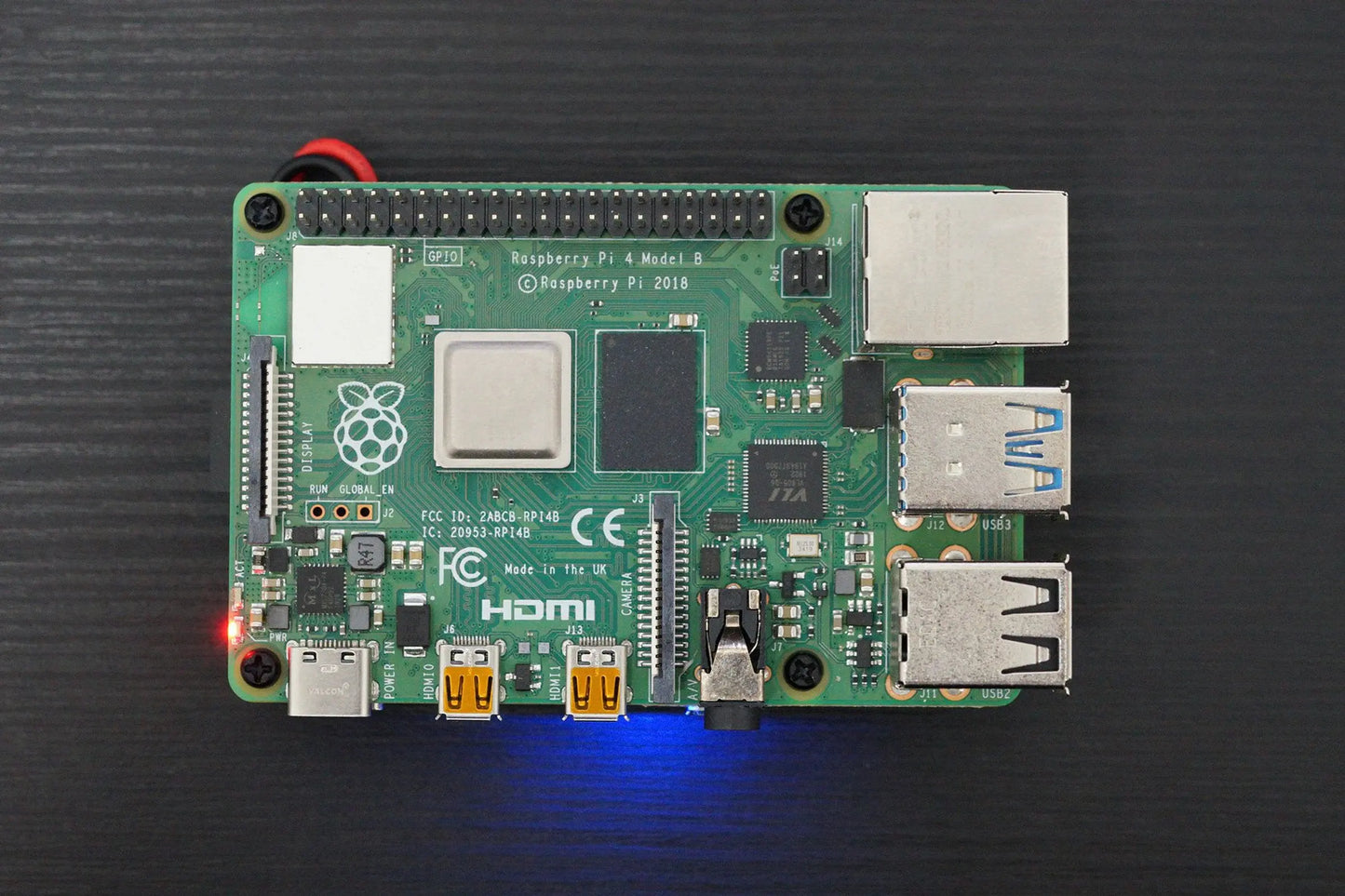

Support Pi Models

• Raspberry Pi 5B
• Raspberry Pi 4B
• Raspberry Pi 3B/3B+/3A+

Warning

Please read the I2C instruction before manually writing custom data to the register. Invalid data may cause device damage.
