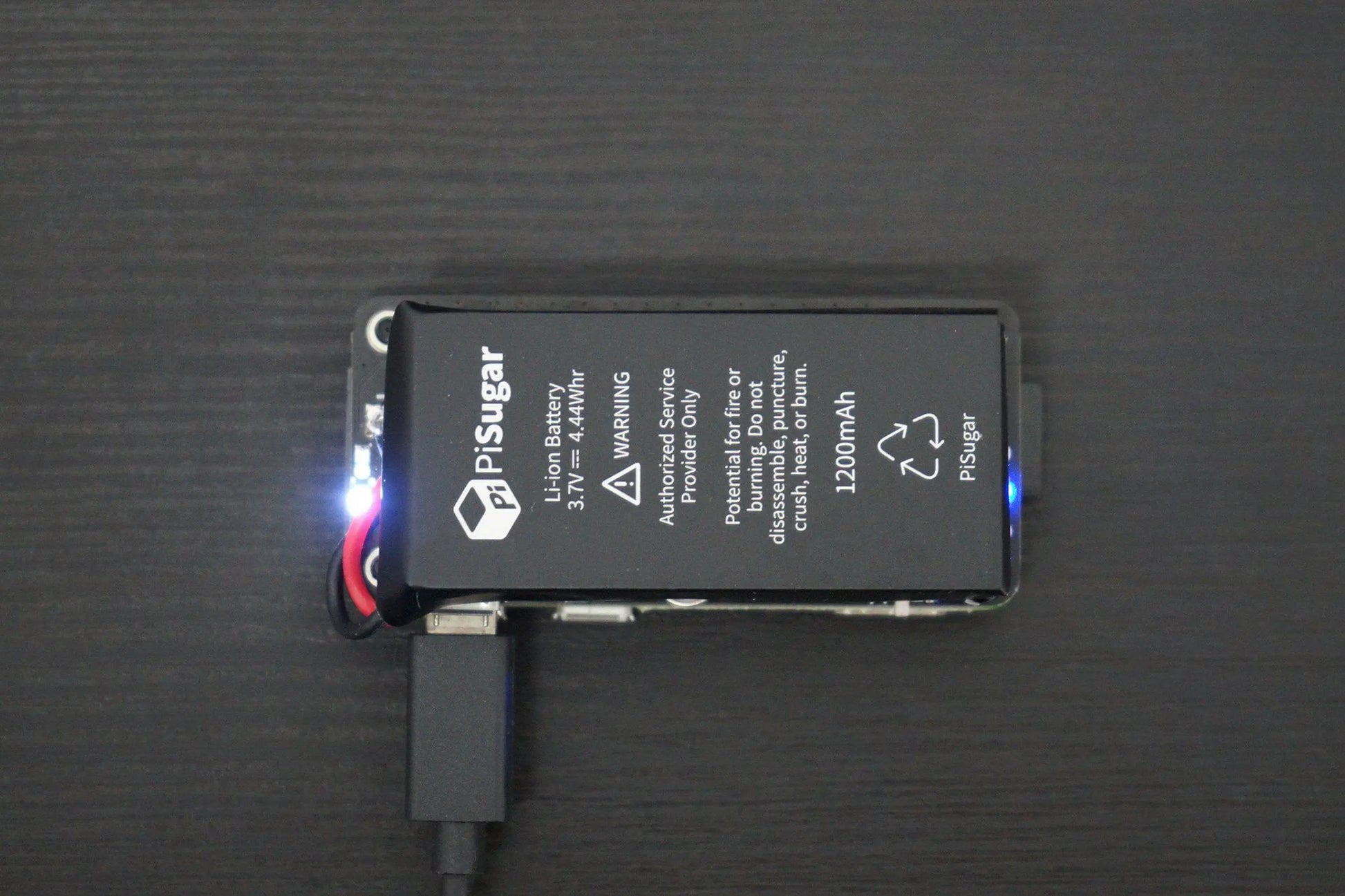

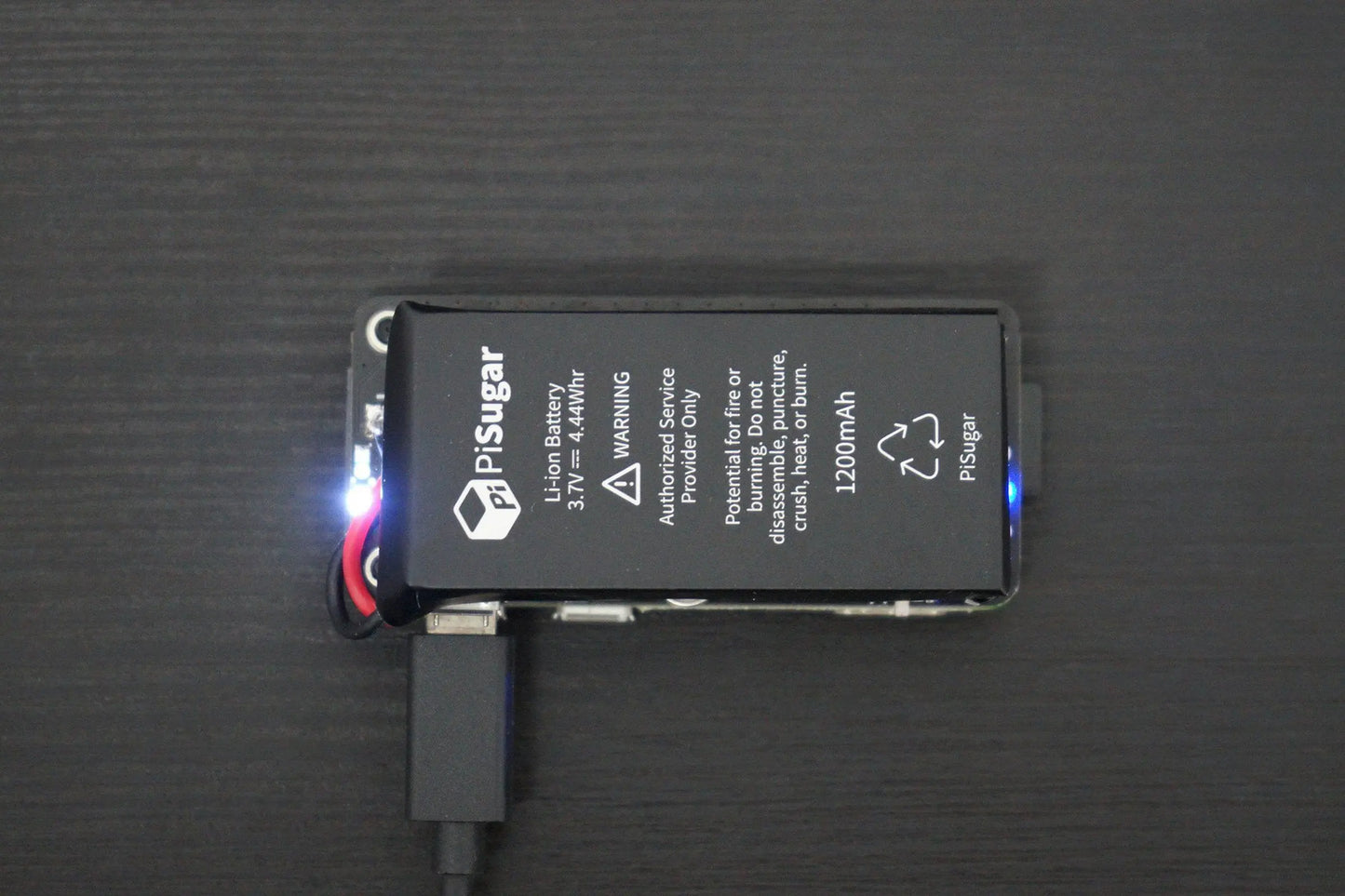

PiSugar 2 1200 mAh Raspberry Pi Zero Battery

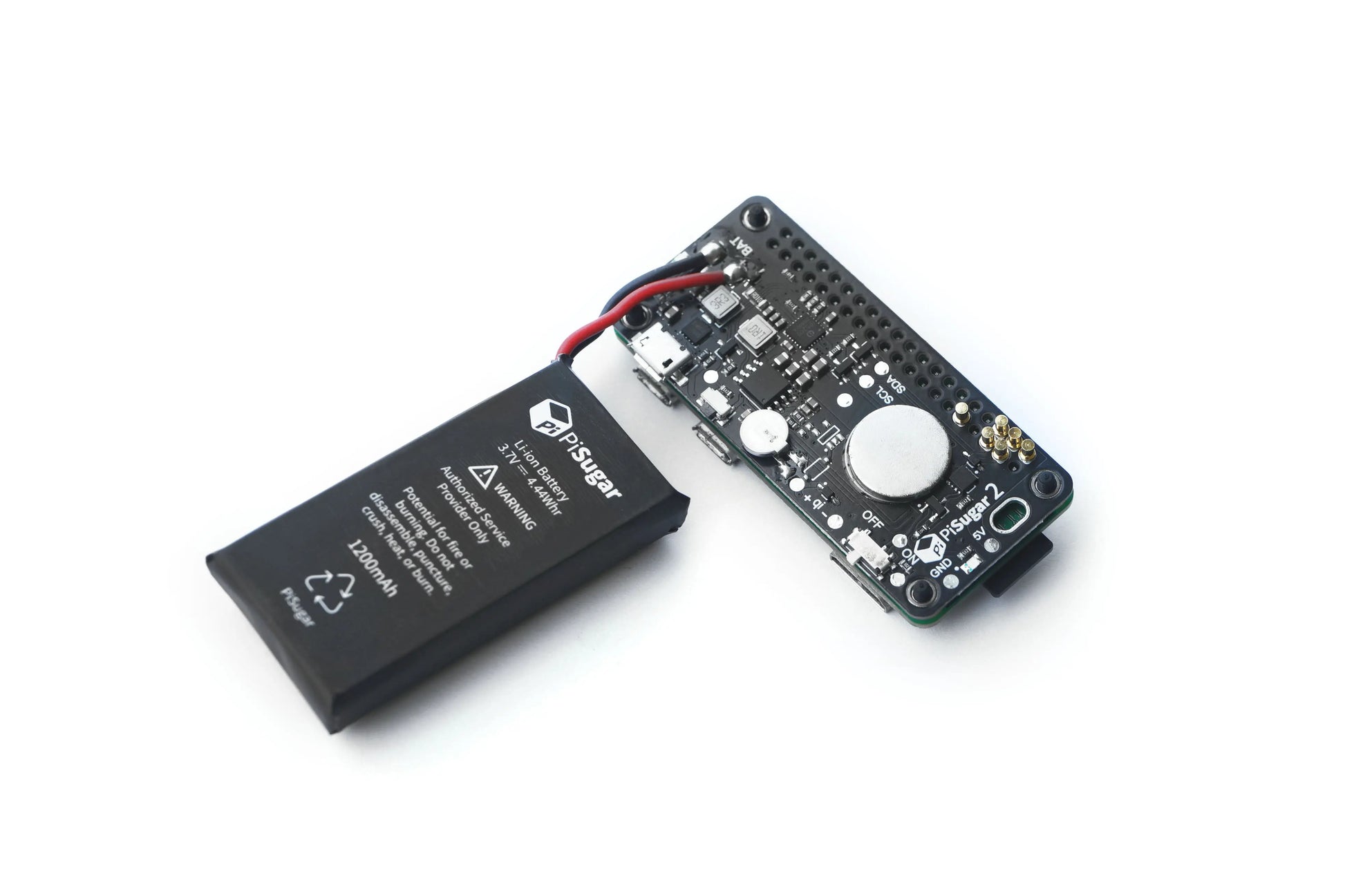

PiSugar 2 is a battery module specially designed for the Raspberry Pi zero series. As a Raspberry Pi zero battery It integrates UPS, RTC, custom buttons and other functions to maximize the portability of the Raspberry Pi zero.

Portable Raspberry Pi Zero Battery

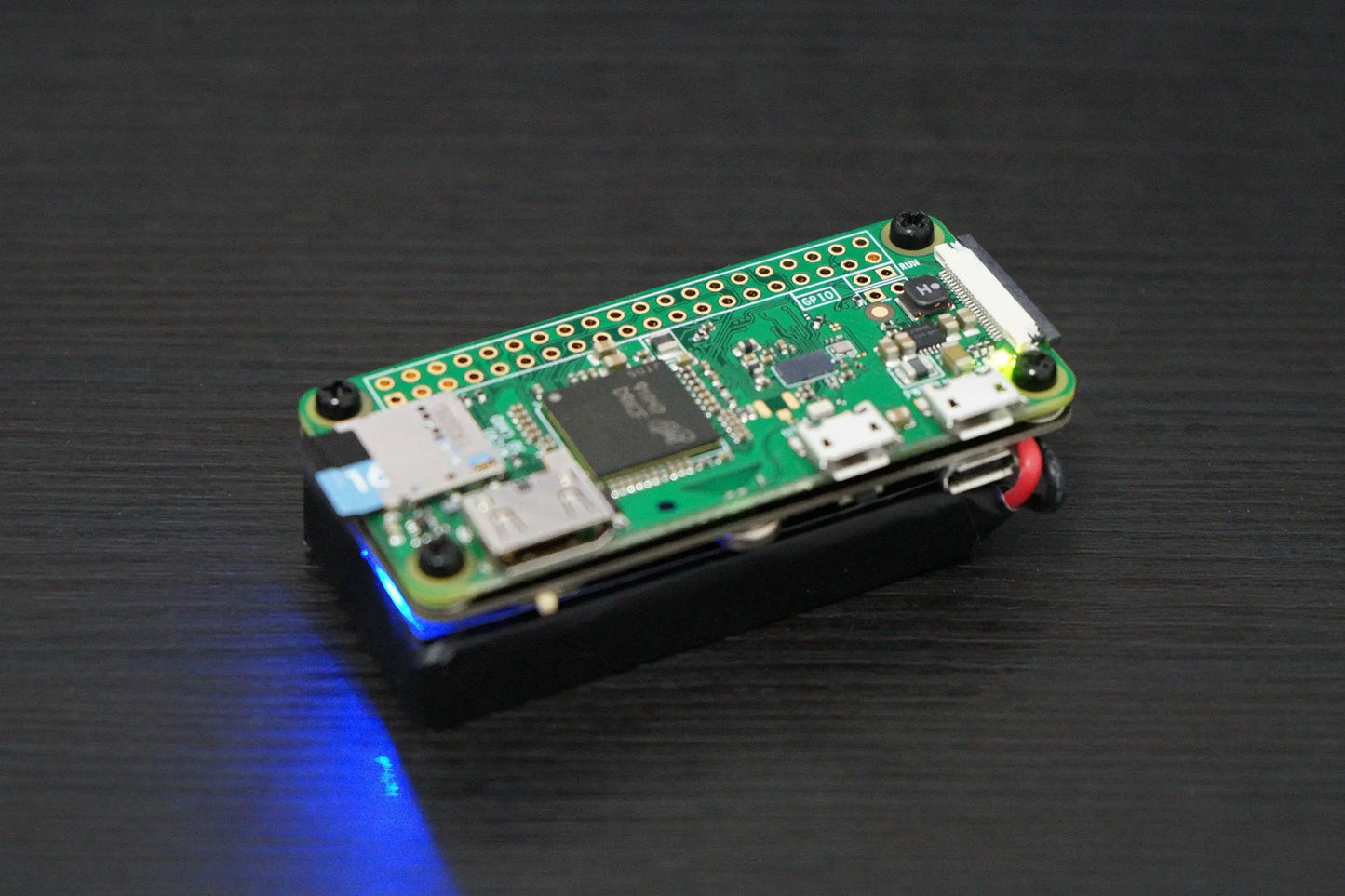

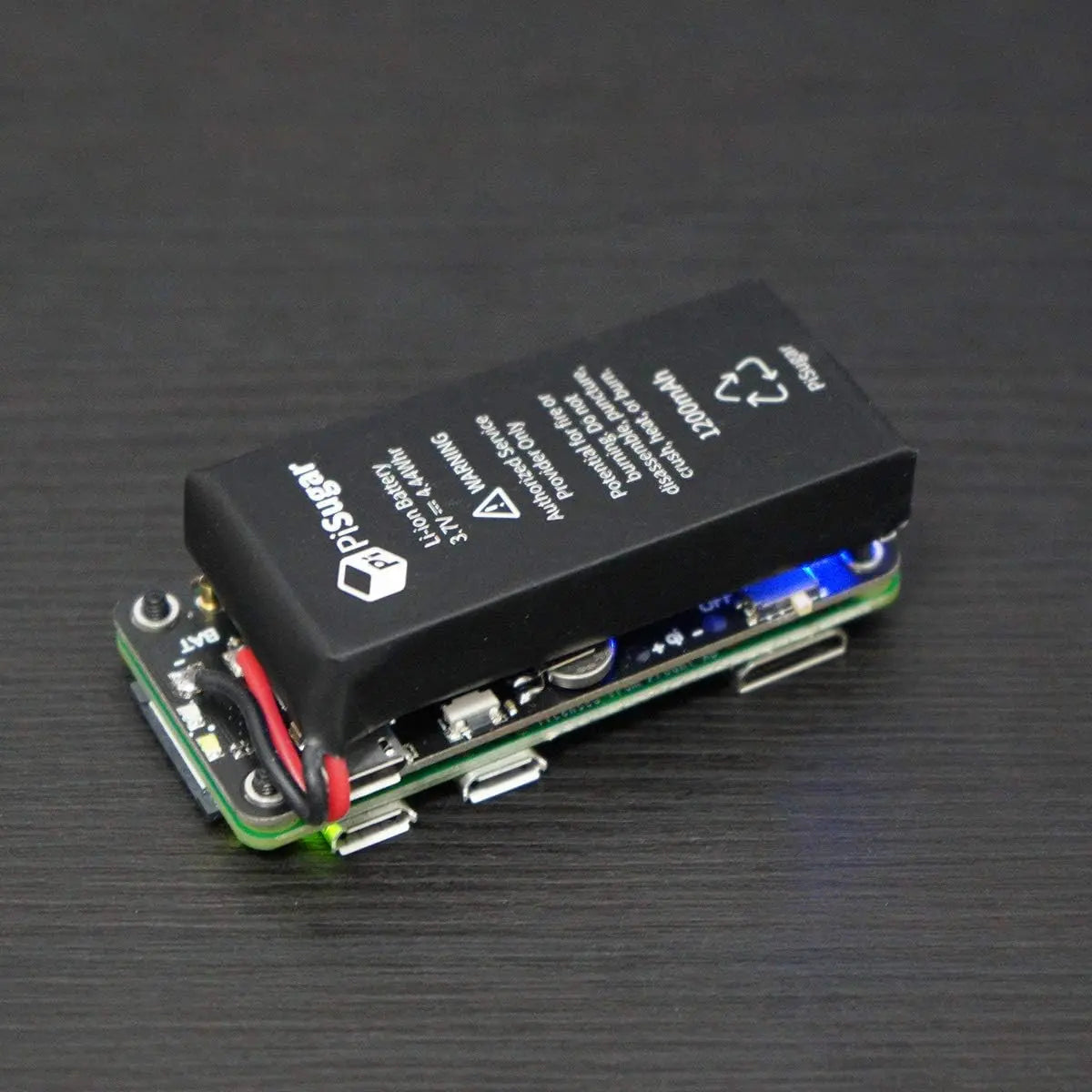

PiSugar 2 maintains the same size as the previous generation product while continuing our design concept. It uses special SugarPins to connect to the bottom of the Raspberry Pi GPIO to provide data communication while supplying power.

In order to achieve a more user-friendly experience, we have created a brand new WebUI interface. You can conveniently control the battery module without coding knowledge. Obtaining power data, charge status, setting a timed boot, button functions, etc. If you are a developer, you can also implement more customized functions through the API we provide.

You can use our open-source 3D cases to turn your hardware work into a complete product.

• Easy to Install
  Install in 30 secs. Connect pi0 from the bottom without soldering, does not occupy GPIO headers.

• UPS
  Provide uninterrupted power to the pi. Support charging and discharging at the same time.

• Open-source Cases
  Easy and graceful. You can easily put your prototypes in 3D printed models.

• On-board RTC
  Provide real-time clock for the system and realize timing startup function.

• Custom Button
  Custom any function with the shell command line. Single/double/long click can be set independently.

• WebUI & APP
  Check battery status and setting advanced features in a friendly UI.

Electrical Specs

• Input: 5V-3A
• Output: 5V-3Amax
• Battery Capacity: 1200mah
• Battery Voltage: 4.2Vmax

Advanced Features

• Support charged and discharged at the same time
• UPS
• Low battery safe shutdown
• RTC real-time clock
• Timing boot
• Programmable button
• WebUI for management
• Physical disconnect switch
• Extensible with wireless charging and solar charging

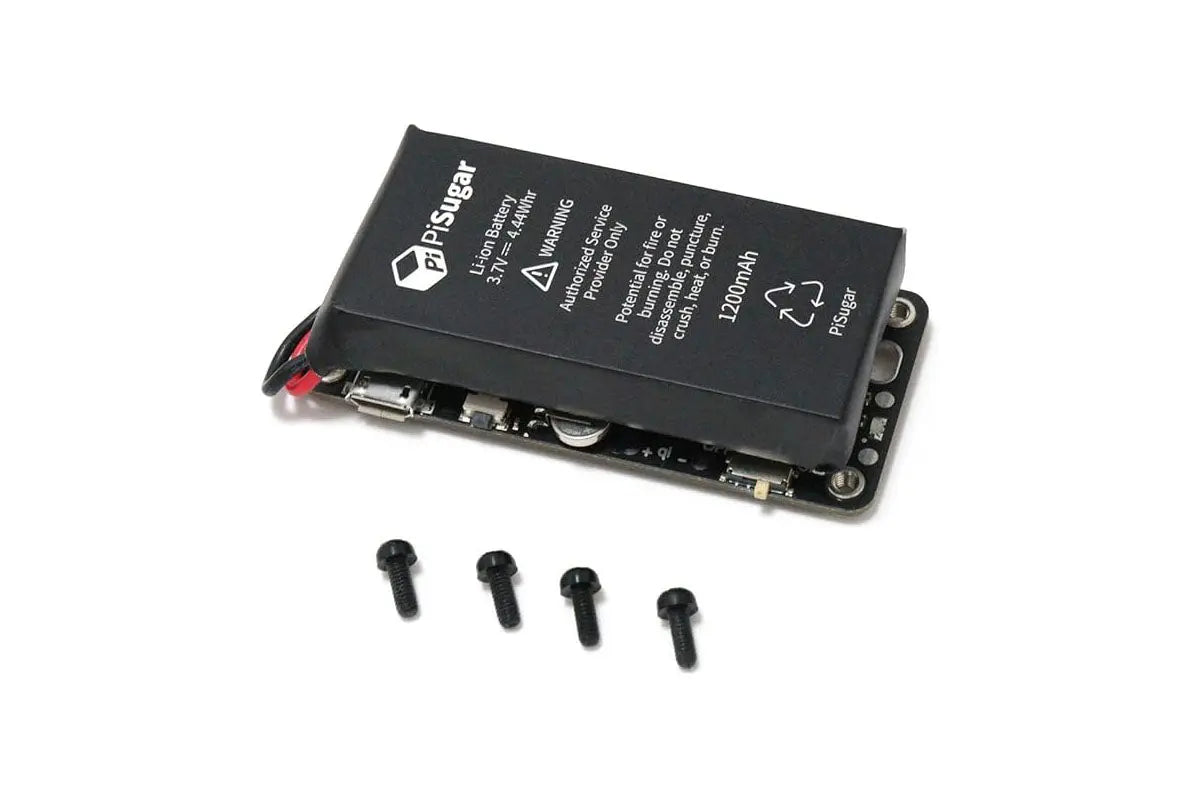

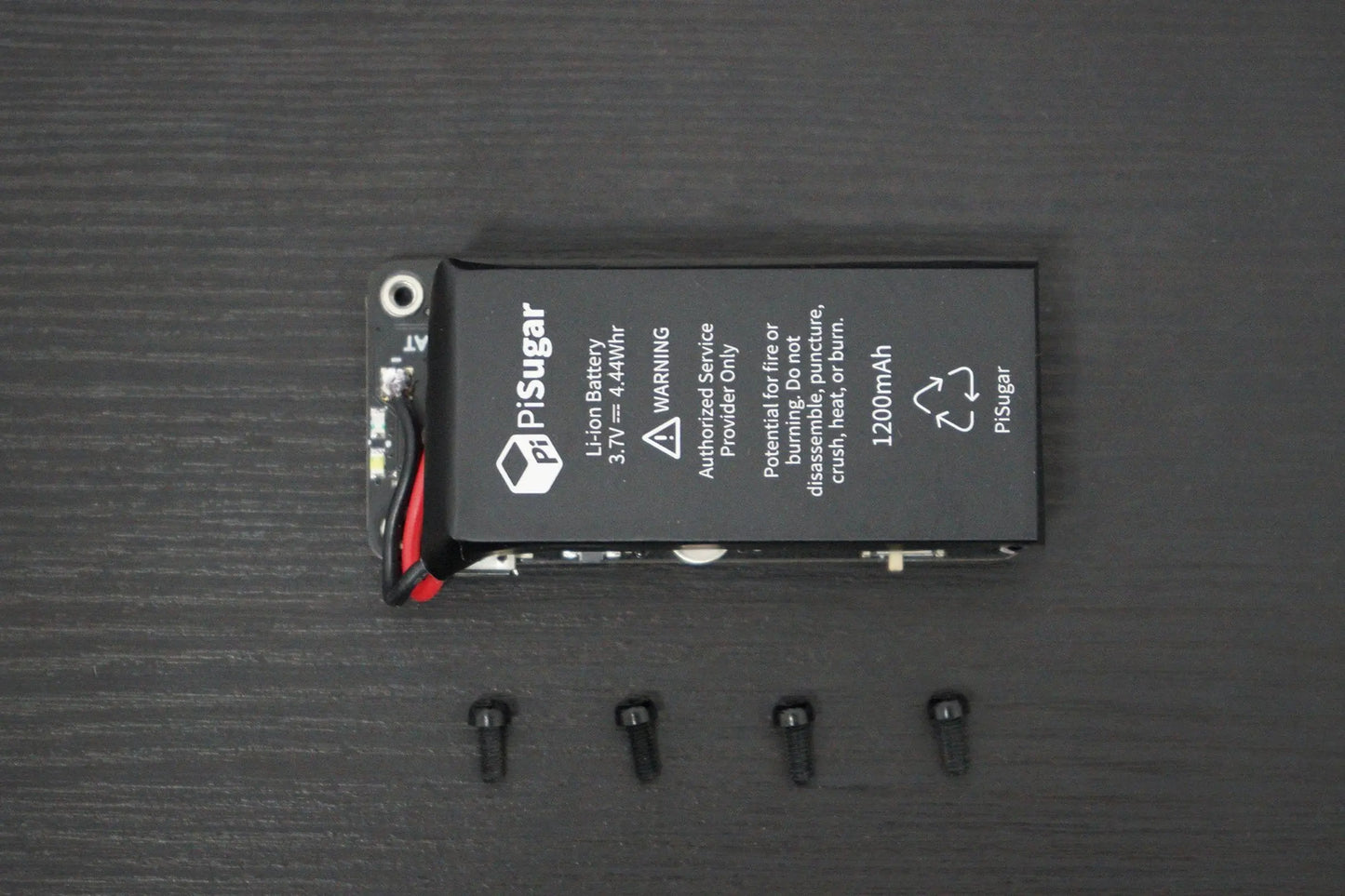

Package Include

• 1 x Battery Module
• 4 x Screws

Hardware Installation

1. Turn the switch to OFF
2. Align pogo pins to Raspberry Pi GPIO
3. Use matching screws to tighten
4. Press and hold the activation button for 2 seconds (activation is required after battery replacement/low battery shutdown)
5. Turn the switch to ON and enjoy

Support Pi Models

• Raspberry Pi zero (WH)
• Raspberry Pi zero 2 (WH)

More details can be found on our wiki.

Warning

Please read the I2C instruction before manually writing custom data to the register. Invalid data may cause device damage.
