Pwnagotchi Complete Pack - Pi02w-PiSugar3-eink-case

What is Pwnagotchi?

​Pwnagotchi is an AI-powered tool that learns from surrounding Wi-Fi environments to optimize the capture of crackable WPA key material, such as handshakes and PMKIDs. It operates on a Raspberry Pi Zero W, utilizing Bettercap for network interactions, and presents itself as a digital pet with various moods and personalities, enhancing user engagement.

Pwnagotchi Project is created by evilsocket

Community: https://pwnagotchi.org/

What you pay for

• Hardwares (including pisugar, e-ink screen, cases, tf-card, reader and convertor...)
• Full assembling  service

What you do not pay for

• Software (latest pwnagotchi image, pre-installed in the tf-card, PiSugar3 plugin)
• 3D printed case design (https://github.com/PiSugar/pwnagotchi-case/tree/main/pisugar3-slim-pwn)

Package Includes

• Waveshare 2.13inch e-paper hat V4
• Raspberry Zero 2W (with slim-mode-header)
• PiSugar 3 1200mah battery pack
• Side opening lid case (3D printing, SLA, black)
• 32G TF card with pwnagotchi image ready (v1.5.2)
• TF card reader
• OTG and miniHDMI converter

Christmas Hat

(°▃▃°) Christmas Hats are back in stock! Each of your Pwnagotchi will be shipped with a Christmas hat.

How to use

You can use it as Pwnagotchi only. Once you recieve the package, just plug in the e-ink phat and turn it on and feed it with wifi! Or you can use these modules to develop other interesting projects.

Assemble Steps

• Attach the screen-hat (try push harder to make them well connected)

• PiSugar 3: Short press and long press to turn on/long press to turn off
• Use PiSugar3's type-c port to charge (not pi-zero's usb ports)
• It takes about 1-2 minutes to boot up (you can see the screen refresh and the face shows)
• The battery would last about 4 hours for one charging.


Other Setup

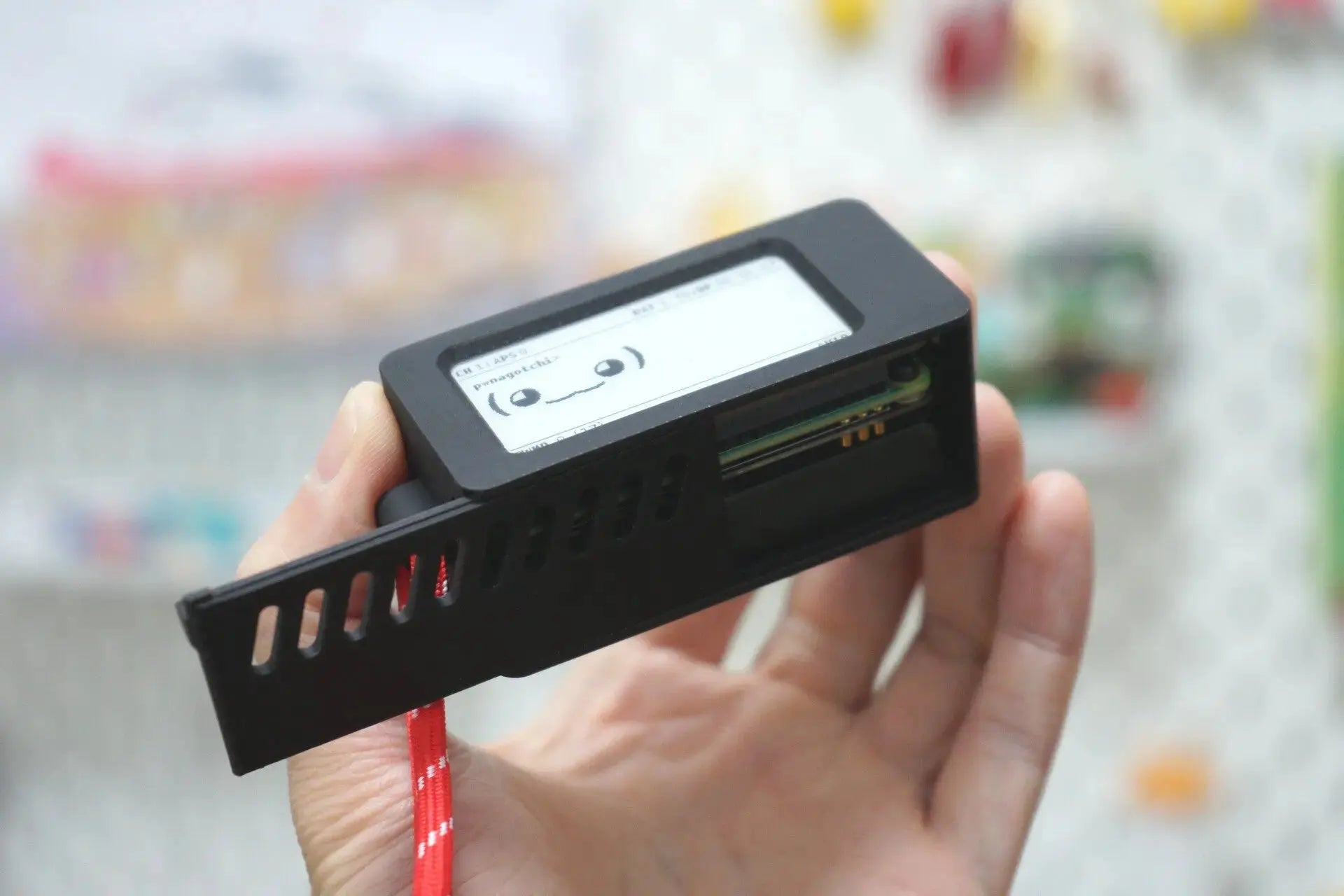

• Changing the TF card: you can eject and insert the TF card through the opening of the case, so you don't have to unscrew all the parts
• Re-configuring your pwnagotchi: https://pwnagotchi.org/getting-started/configuration/index.html


3D Material Detail

• Somos GP resin
• Surface：perfect with painting
• Features：similar with ABS
• Heat Distortion Temperature：46℃
• Tolerance：200μm
• Color: White/Black
